4.9. Operational Maps Tutorials#

Maps play a central role in humanitarian work, helping teams understand needs, capacities, and conditions on the ground. This page brings together practical, scenario-focused tutorials that show how to create clear and effective operational maps in QGIS. Each example highlights techniques you can adapt to your own data and context, supporting better coordination and decision-making in the field.

4.9.1. Health Facility Capacity Map: Visualising with multi-variable point symbols#

A health facility capacity map is a practical and valuable tool for health preparedness and response. These maps help responders quickly identify the locations of health services, assess their capacity, and determine whether they are operational. In many situations, this information is crucial for making decisions about resource allocation, referral pathways, surge support, and identifying service gaps. The maps are typically based on datasets provided by governments or partner organizations. If official datasets are not available, OpenStreetMap can serve as a good starting point.

Health capacity maps usually combine multiple attributes into a single symbol by utilizing size, color, and different shapes.

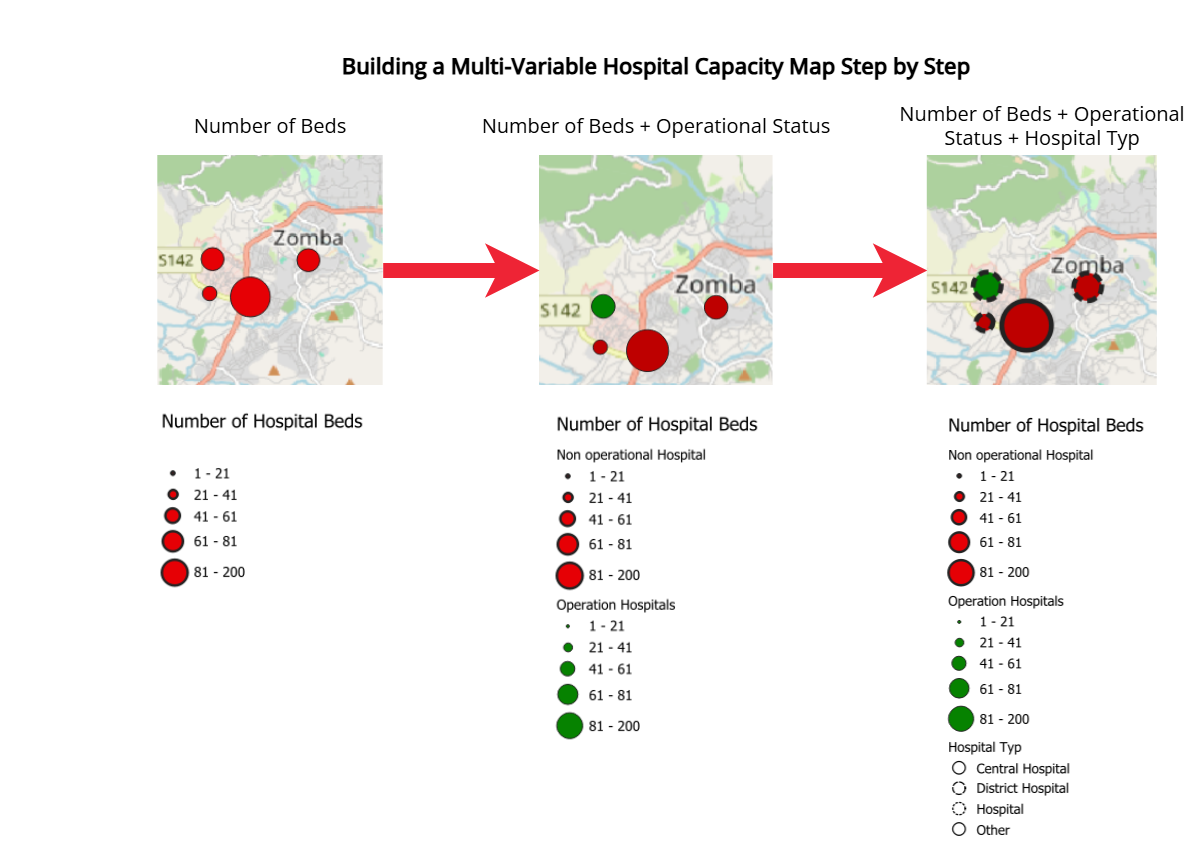

../../_images/HS_capacity_map_examepls.drawio.svg

Fig. 4.83 Building a Multi-Variable Hospital Capacity Map Step by Step#

In this tutorial, you will learn how to create a multi-variable point map of hospitals in Malawi using QGIS. You will work with a modified version of the Malawi Master Health Facility Registry (with fictitious figures and hospital bed counts added for training purposes) and apply a combination of proportional symbol size, manual classification, and data-defined color overrides to effectively communicate both capacity and operational status at a glance.

4.9.1.1. About the Dataset#

The data used in this exercise comes from the Malawi Master Health Facility Registry (MHFR), the official national database of all health facilities in Malawi. Malawi - Health Facility Registry It exists to provide a single, up-to-date source of information for planning and monitoring health services.

⚠️ Note: For the purpose of this tutorial, the dataset has been manipulated.

Download the data folder here and save it on your PC. Unzip the .zip file.

4.9.1.2. Fields used in this tutorial#

Field

Purpose in tutorial

TYPE

To extract hospitals from the full facilities dataset

STATUS

To map Functional vs Non-functional facilities using colour

Number_Beds

To represent hospital capacity using graduated symbol sizes

LATITUDE & LONGITUDE

To create point geometries in QGIS

These fields are enough to build a clear, multi-variable point map.

4.9.1.3. Health Facilit Capacity Map Tutorial#

4.9.1.3.1. Data preparation#

First, we need to load the Malawi - Health Facility Registry dataset into QGIS

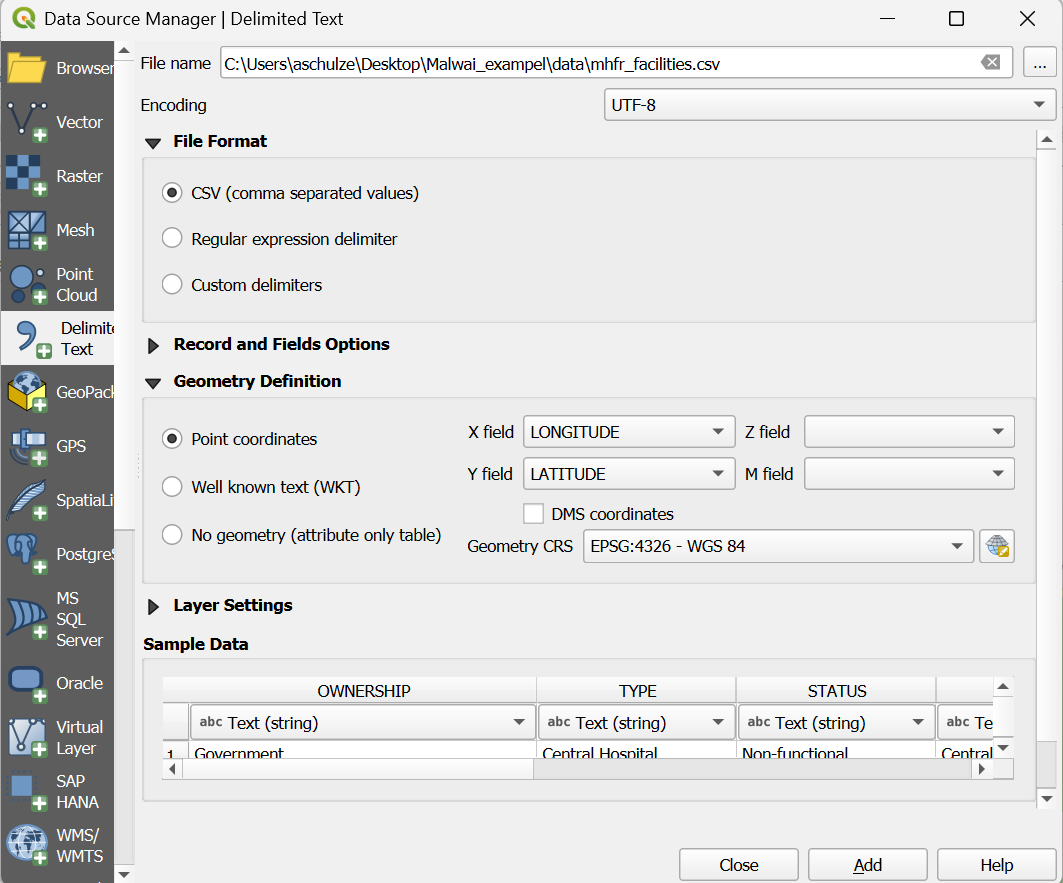

Import the Malawi health facilities CSV into QGIS.
Import the Malawi health facilities CSV into QGIS

  1. In the top menu, go to
    Layer → Add Layer → Add Delimited Text Layer…

  2. Next to the File name field, click the three dots
    and browse to your Malawi health facilities CSV file and click Open.

  3. After selecting the file, QGIS will show a preview of the table.
    Take a moment to review the columns:

    • OWNERSHIP

    • TYPE

    • STATUS

    • ZONE, DISTRICT

    • DATE OPENED

    • LATITUDE, LONGITUDE

    • Number_Beds
      These fields contain all information needed for the mapping exercise.

  4. Under Geometry Definition:

    • Select Point coordinates.

    • Set X field = LONGITUDE.

    • Set Y field = LATITUDE.

    • Ensure the Geometry CRS is set to EPSG:4326 – WGS 84.

  5. Click Add.
    The layer will now appear in your Layers panel and the points will display on the map canvas.

../../_images/en_point_visualisation_malawi_HS_csv_import.png

Next, we need to reduce the points visualised on the map to the facilities that actually have hospital beds. In this tutorial, these are Central Hospital, District Hospital, and Hospital.

Filter the dataset to see only hospitals (Video)
Filter the dataset to see only hospitals

  1. Open the attribute table

    • Right-click Malawi_health_facilities_raw → Open Attribute Table.

    • Look briefly at the key fields:

      • TYPE – identifies facility type. Hospitals usually appear as Central Hospital, District Hospital, or Hospital.

      • STATUS – should contain Functional or Non-functional.

      • Number_Beds – mostly fill

  2. Filter the dataset to include only hospitals

    • Right-click Malawi_health_facilities_raw → Filter…

    • Enter the expression:

    "TYPE" IN ('Central Hospital', 'District Hospital', 'Hospital')

    • Click Test to check how many rows match, then OK.

    • QGIS will now hide all non-hospital facilities.

    • Your filtered layer now shows only hospital facilities.

4.9.1.3.2. Visualising the number of beds with proportional circle methods#

Now that your layer is filtered to show only hospitals, you can create a map that shows hospital capacity using proportional circles.
The number of beds (Number_Beds) will control the size of each symbol.

Visualise hospital capacity using proportional (graduated-size) circles (video)

Visualise hospital capacity using proportional circles (graduated-size)

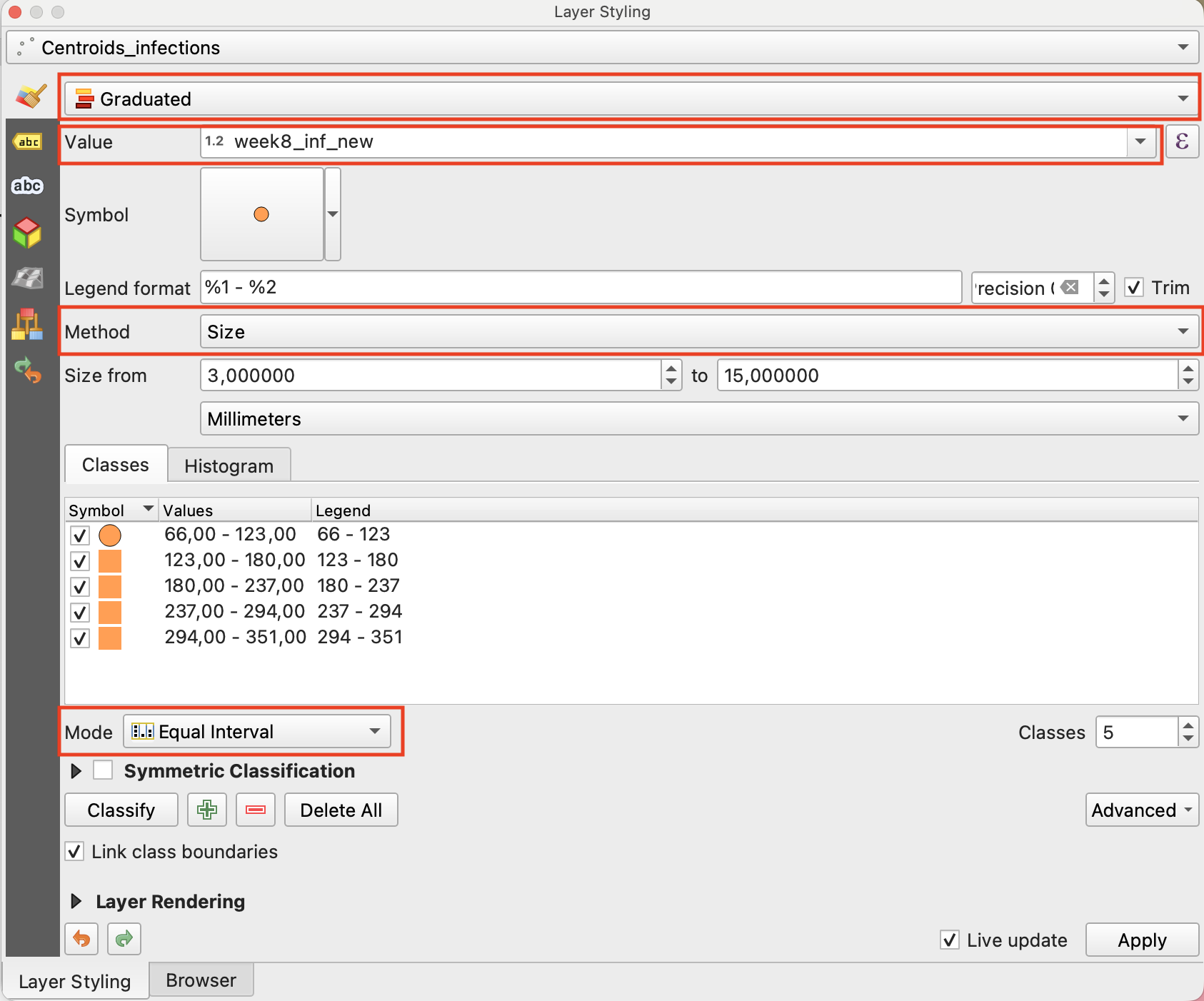

  1. Open the Layer Styling panel

    • Select your hospital layer (the filtered Malawi_health_facilities_raw).

    • Right-click the layer → Properties… → Symbology.

  2. Change the renderer to Graduated

    • At the top of the Symbology window, change the style from Single Symbol to Graduated.

  3. Select the attribute for symbol size

    • Under Value, choose Number_Beds.
      This is the field that will control the size of each circle.

  4. Change the Method to “Size”

    • Next to Method, change the default (usually “Color”) to Size.
      This turns the graduated classification into a proportional circle map.

  5. Generate the classes

    • Click Classify.
      QGIS will create size classes based on the range of bed numbers in your dataset.

The data range is 1–200 beds, but only a few hospitals have more than 80 beds.
Most hospitals are small or medium-sized.

Automatic classification would cluster most facilities into one or two classes.
To avoid this, we create balanced, domain-informed classes:

Class

Bed Range

Meaning

1

1–20

Very small hospitals

2

21–40

Small hospitals

3

41–60

Medium hospitals

4

61–80

Large hospitals

5

81–200

Very large / referral hospitals

Adjust the Lower/Upper values for each class accordingly.

Note

Why these ranges?

  • Most hospitals fall in the 1–60 bed range → we break this into three meaningful groups.

  • Few hospitals exceed 80 beds, so the top class isolates the rare high-capacity referral facilities.

  • This ensures variation in symbol size is visible and not compressed into one tiny class. (See Graduated Classification)

The resulting map displays hospitals as circles of different sizes, each size representing one of the bed-capacity classes you defined earlier. This gives a quick visual impression of where smaller and larger hospitals are located. However, at this stage the map only shows capacity: it does not yet communicate whether a hospital is functional or non-functional.

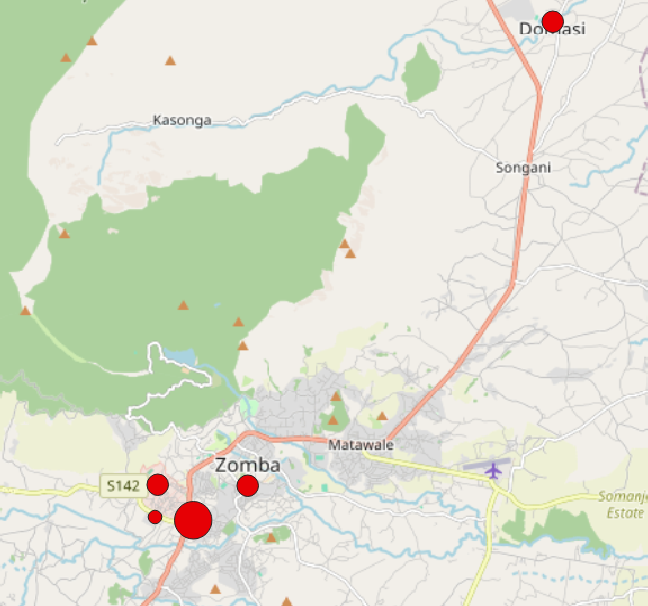

Proportional circle map showing the number of beds

../../_images/en_Malwai_Exampel_proportional_circel_result.png

Fig. 4.84 Proportional circles: beds#

Classes of proportional circle map

Smaller circles correspond to hospitals with few beds, while larger circles indicate facilities with higher capacity.

../../_images/en_Malwai_Exampel_proportional_circel_result_legend.png

Fig. 4.85 Proportional circles: beds classes#

4.9.1.3.3. Adding visualisation of operational status with colour#

To visualise the operational status of each hospital (operational or non-operational) alongside its bed capacity, we can use QGIS’s data-defined override functionality. A data-defined override allows you to control a symbol property—such as colour, size, rotation, or opacity—using an expression or an attribute value from the layer. This means QGIS adjusts the symbol automatically for each feature, based on the data rather than manual styling. Using this technique, we can assign a colour to each hospital according to its status while keeping the proportional circle sizes for bed capacity.

First, we need to open the data-defined override Expression Builder.

Open data-defined override to adjust colour based on operational status (Video)

Open data-defined override to adjust colour based on operational status

  1. Select your hospital layer (the filtered Malawi_health_facilities_raw).

  2. Right-click the layer → Properties… → Symbology.

  3. Nex to Symbol Tab click on the dropdown menue, then click at the top click on Configure Symbol.

  4. In the new window click on Simpel Marker and then next to fill colouron the data-defined override symbol

To make this work, we now need to tell QGIS which colour to use for each hospital. Data-defined overrides use the QGIS expression language, which lets you write short rules that are applied automatically to every feature in the layer. In this step, we will write a small expression that checks the value in the STATUS field and assigns the correct colour based on whether the hospital is functional or not.

Use an Expression to Colour Hospitals by Status (Video)

Use an Expression to Colour Hospitals by Status

  1. This expression tells QGIS to automatically choose a colour for each hospital based on its STATUS attribute.
    Functional hospitals become green, non-functional ones become red, and any missing values receive a neutral grey. The CASE statement works like an “if–else” rule: QGIS checks the value in the STATUS field and assigns the corresponding RGB colour (RGB Color Picker), ensuring every point is styled consistently without manual editing. You can copy the complete code here:

CASE
  WHEN "STATUS" = 'Functional' THEN color_rgb(0, 130, 0)     -- green
  WHEN "STATUS" = 'Non-functional' THEN color_rgb(190, 0, 0) -- red
  ELSE color_rgb(150, 150, 150)                               -- fallback for missing/unknown
END

Or write the code yourself using the help of the functionality of the expression builder:

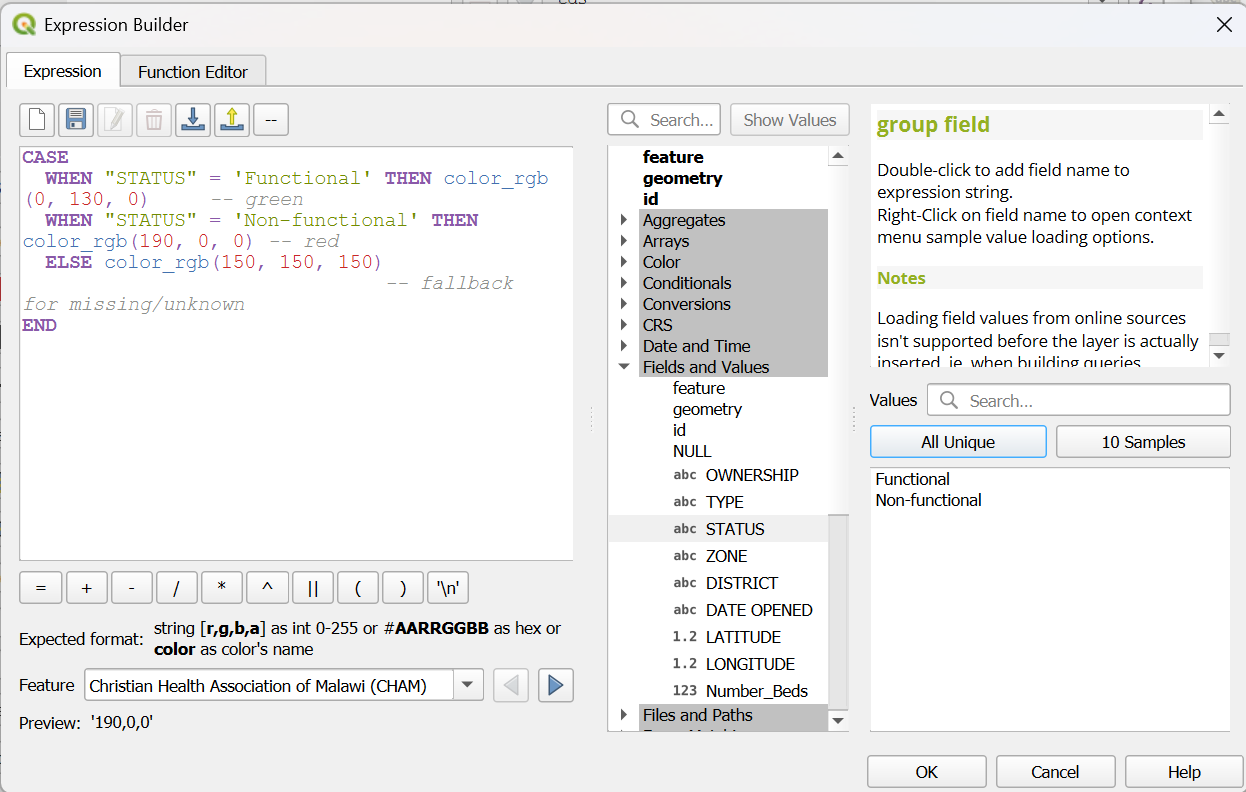

../../_images/en_data_defined_overried_calculator_Malwai_Exampel.png

Fig. 4.86 Expression in data-defined override Expression Builder#

Proportional circle map showing the number of beds AND operational status

../../_images/en_Malwai_Exampel_proportional_data_difined_override_circel_result.png

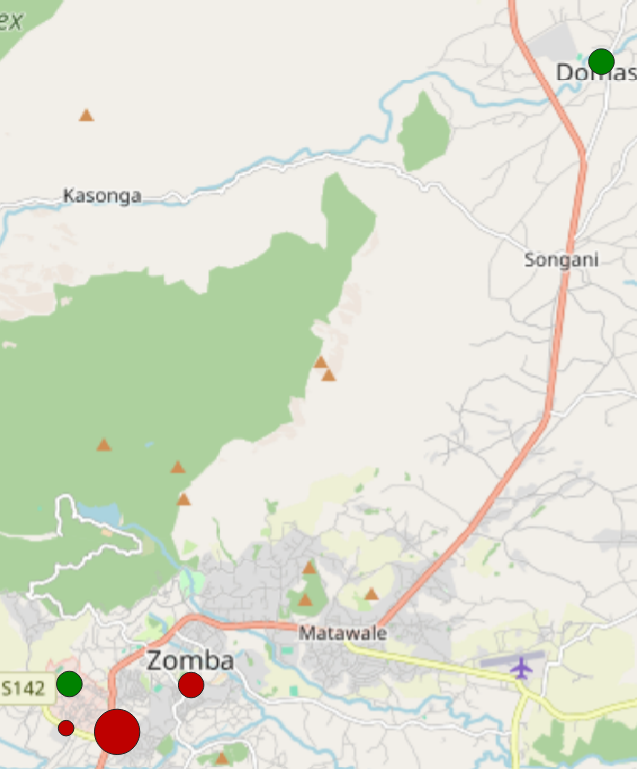

Fig. 4.87 Proportional circles: beds + operational status#

Classes of proportional circle map This new visualisation shows the size of the circle, the number of beds, the colour (Green: Operational; Red: Non-Operation), and the operational status of the hospitals.

../../_images/en_Malwai_Exampel_proportional_circel_data_defined_override_result_legend.png

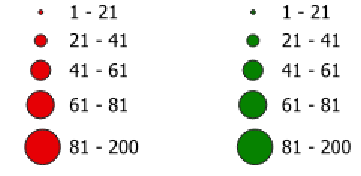

Fig. 4.88 Legend proportional circles: beds + operational status#

4.9.1.3.4. Making the Legend Match Your Map#

⚠️ Note: When you use a data-defined override to colour your symbols, QGIS does not automatically update the legend.

To make sure your map readers understand the meaning of the colours, you need to customise the legend manually. Here are two practical ways to do this.

Option 1: Legend with helper layer

A straightforward workaround is to duplicate your hospital layer and use these copies solely as legend helpers. Rename the duplicate for easy identification and change its color in the visualization. Make sure to hide this layer in the map view.

In the Print layout, you can add this layer to the legend. This way, the legend will display the correct colors, while your original layer, which contains the data-defined overrides, will still be responsible for the actual map styling.

Option 2: Edit Legend Colours Directly in the Print Layout

Another option works only in the Print Layout. In the Legend, just add your hospital layer twice. The secound one, you can adjust the colour of each symbol directly in the Legend. Set each item to green. Using the option Start a new column before this term, you can place the two layers next to each other.

../../_images/en_Malwai_Exampel_proportional_circel_data_defined_override_result_map.png

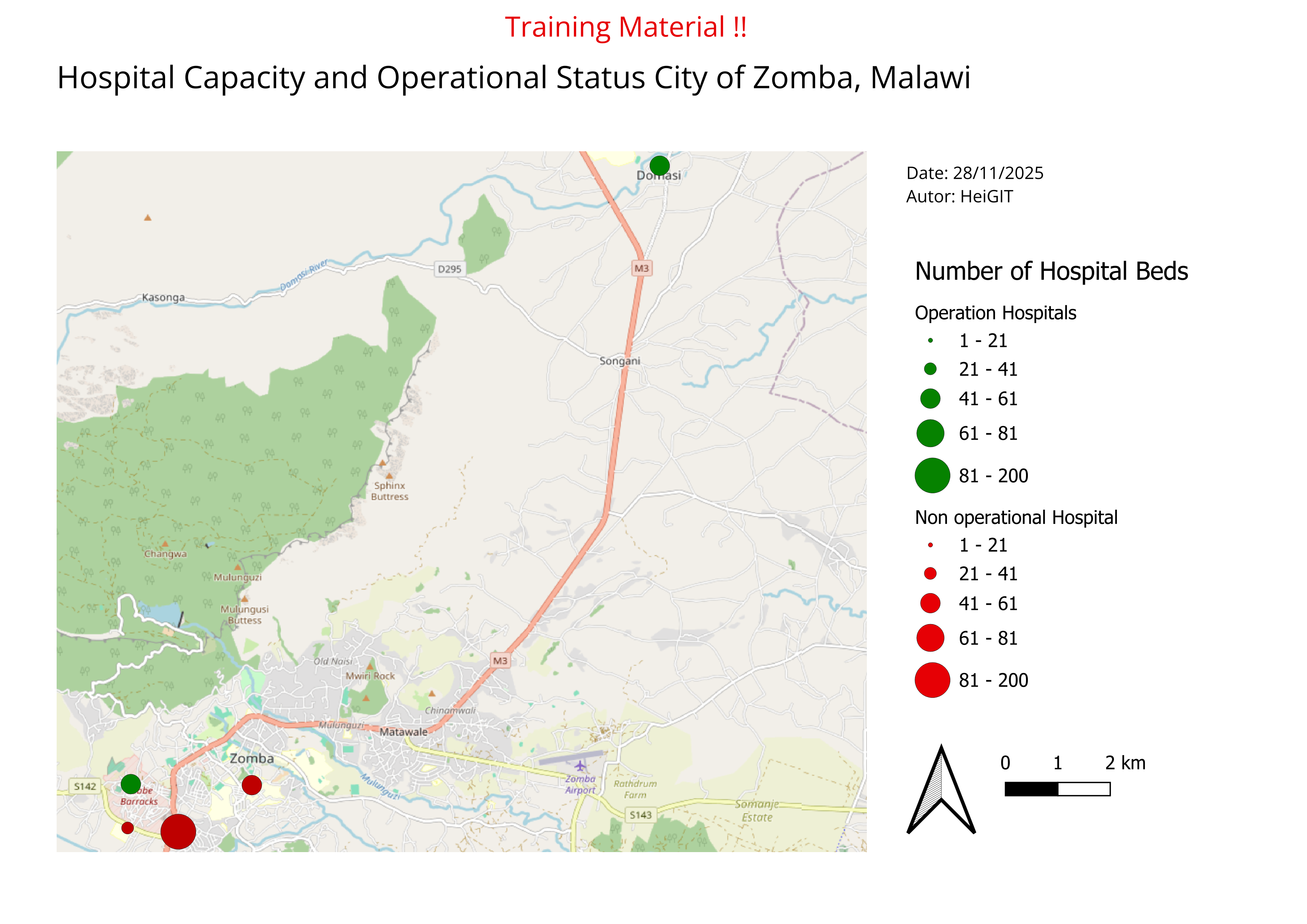

Fig. 4.89 Exampel Map Proportional circles: Hospital Beds + Operational Status#

4.9.1.3.5. Adding a Third Variable Using Stroke Style (Facility Type)#

Your hospital capacity map now contains a rich amount of information, and it is already useful in its current form. However, QGIS allows us to add an additional layer of meaning without creating new layers or changing the existing size and colour logic. One way to do this is by using the stroke—the outline of each symbol—which can be styled or patterned dynamically. In the next section, you will learn how to use the stroke style to represent a third attribute, making your visualisation even more informative while keeping it easy to read.

Adding a Third Variable Using Stroke Style (Video)

  1. Select your hospital layer (the filtered Malawi_health_facilities_raw).

  2. Right-click the layer → Properties… → Symbology.

  3. Nex to Symbol Tab click on the dropdown menue, then click at the top click on Configure Symbol.

  4. In the new window click on Simpel Marker and then on the

  5. You will see:

  • Fill colour

  • Outline/stroke colour

  • Outline width

  • Stroke style ← we will use this

  1. Add a Data-Defined Override for Stroke Style

  • Next to Stroke style, click the small data-defined override symbol

  • Choose Edit → This opens the QGIS Expression Editor.

  1. Write an Expression to Assign Stroke Styles for TYPE

Here is an example that distinguishes three hospital categories using clear and readable stroke patterns:

CASE
  WHEN "TYPE" = 'Central Hospital' THEN 'solid'
  WHEN "TYPE" = 'District Hospital' THEN 'dash'
  WHEN "TYPE" = 'Hospital' THEN 'dot'
  ELSE 'solid'
END

QGIS applies the rule automatically to each feature.

How this works:

  • Central Hospital → solid outline

  • District Hospital → dashed outline

  • Hospital → dotted outline

  • All others → solid (fallback)

By adding stroke styles to your symbols, the map now carries a third layer of information while keeping the overall design compact and readable. This works best when you limit stroke styles to just a few meaningful categories; using too many patterns will quickly make the map visually noisy. Make sure your legend clearly explains what each pattern represents, and avoid combining stroke style with additional outline colours unless it is absolutely necessary—too many variations can overwhelm the reader. With these principles in mind, your updated map should now communicate three attributes at once in a clear and balanced way.

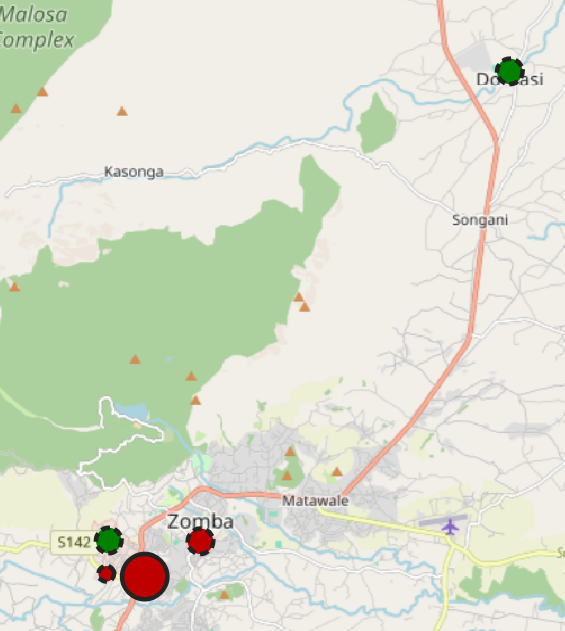

../../_images/en_Malwai_Exampel_proportional_circel_data_defined_override_strock_style_result_map.png

Fig. 4.90 Proportional circles: beds + operational status + Owner status#

../../_images/en_Malwai_Exampel_proportional_circel_data_defined_override_result_strock_style_legend.png

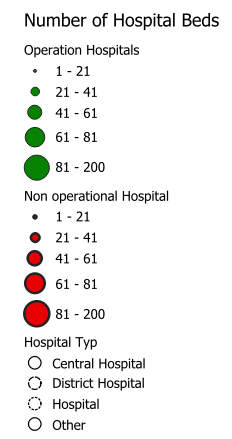

Fig. 4.91 Legend Proportional circles: beds + operational status + Owner status#

With three visual variables now shown in a single symbol, it’s important that the legend reflects all of them clearly. QGIS does not automatically update legend entries when data-defined overrides or stroke styles are used, so a few extra steps are needed to ensure the legend matches what appears on your map. In the next section, you will learn simple ways to adjust the legend so that all size classes, colours, and stroke styles are represented accurately.

Legend with helper layer

A straightforward workaround is to duplicate your hospital layer and use the copy solely as legend helpers. Rename the duplicated layer so it’s easy to recognise in the legend. Use ‘categorised’ classification. Adjust the stroke style (solid, dashed, dotted) to match the categories you used in your map. Make sure to hide the helper layer in the map view so it doesn’t appear on the actual map.

In the Print layout, add the helper layer to the legend. This ensures the legend shows the correct stroke patterns, while your original layer—with its data-defined overrides—continues to control the real map symbology.

../../_images/en_Malwai_Exampel_proportional_circel_data_defined_override_strock_style_result_map_complet.png

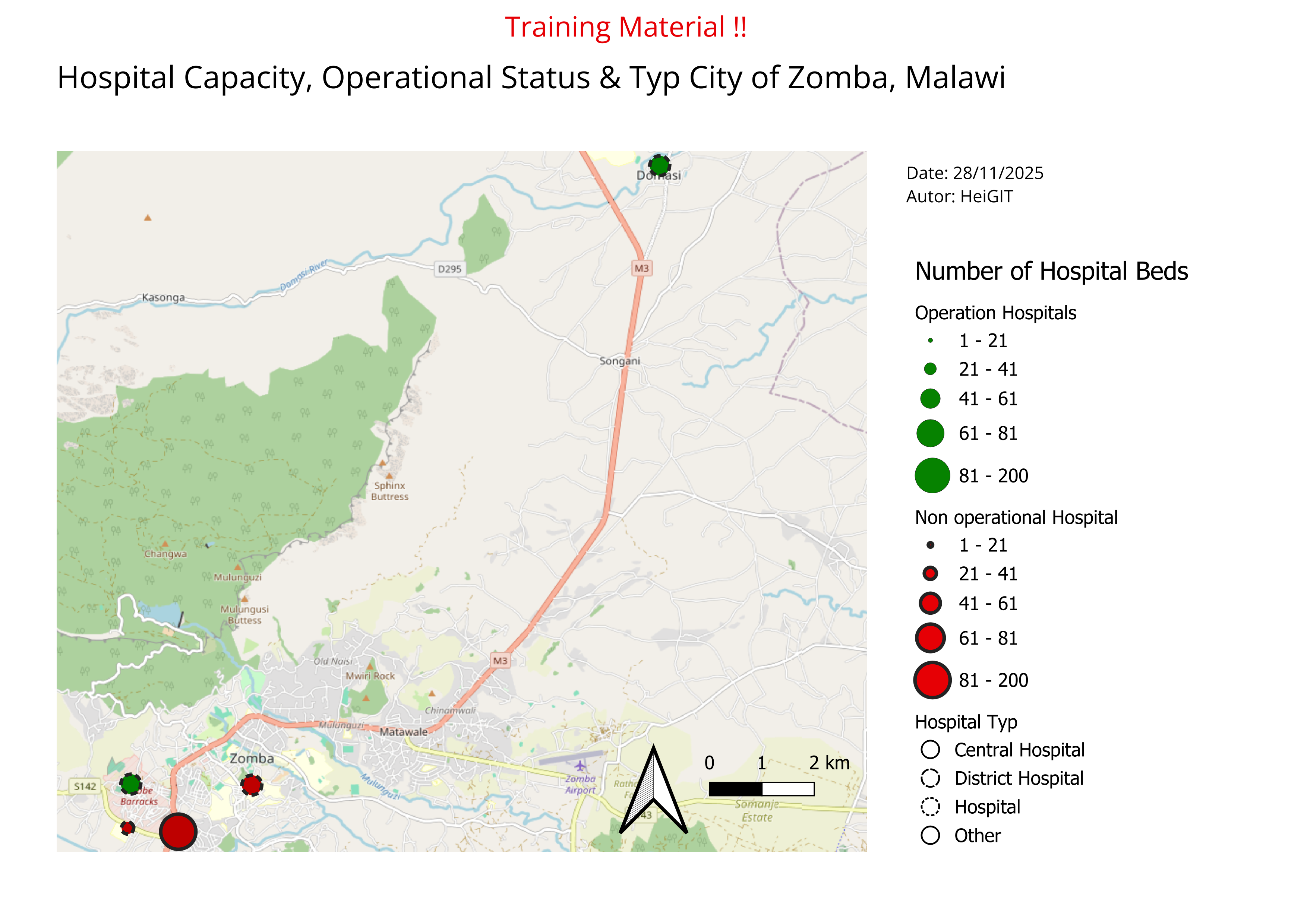

Fig. 4.92 Exampel Map Proportional circles: Hospital Beds + Operational Status#

4.9.2. 3W Map (Who, What, Where)#

Introduction:

A 3W info map is one of the most commonly requested products during the first month of an operation. 3W refers to who, what, and where, meaning which organizations and National Societies are involved in the disaster response, what activities they are carrying out, and where those activities are taking place. The 3W is typically updated regularly as additional actors join the operation and expand their sectoral work in affected locations. You’ll commonly find 3Ws included in SitReps and operational documents, shared on the GO Platform, and discussed during Joint Task Force meetings. In this section we will discuss the essential elements of a 3W map and how to create one using QGIS.

../../_images/4.8_3W_example_Turkey.png

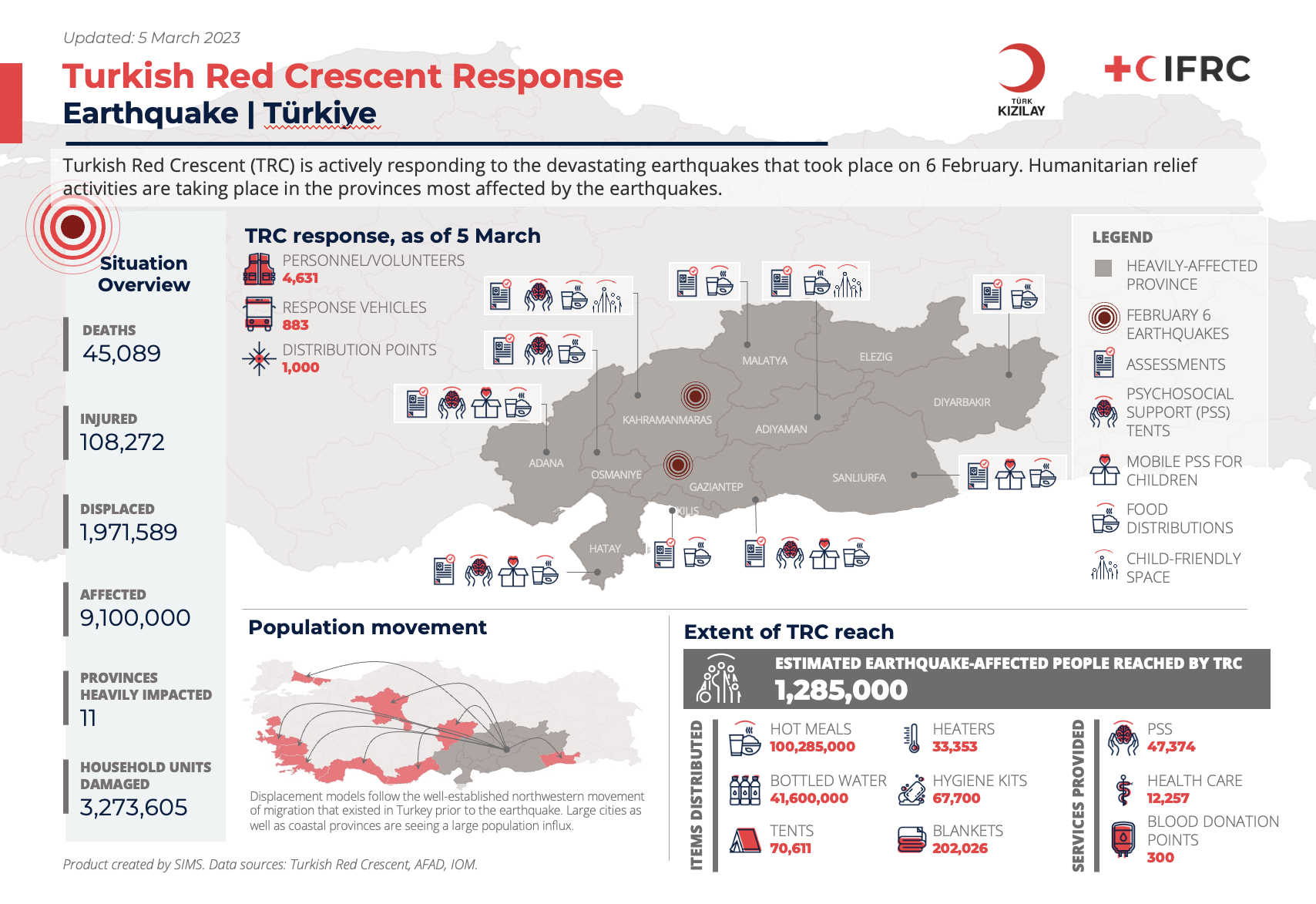

Fig. 4.93 3W Map example: Turkish Red Crescent Response to Earthquake#

Example: 3W Brazil Floods Distribution Map

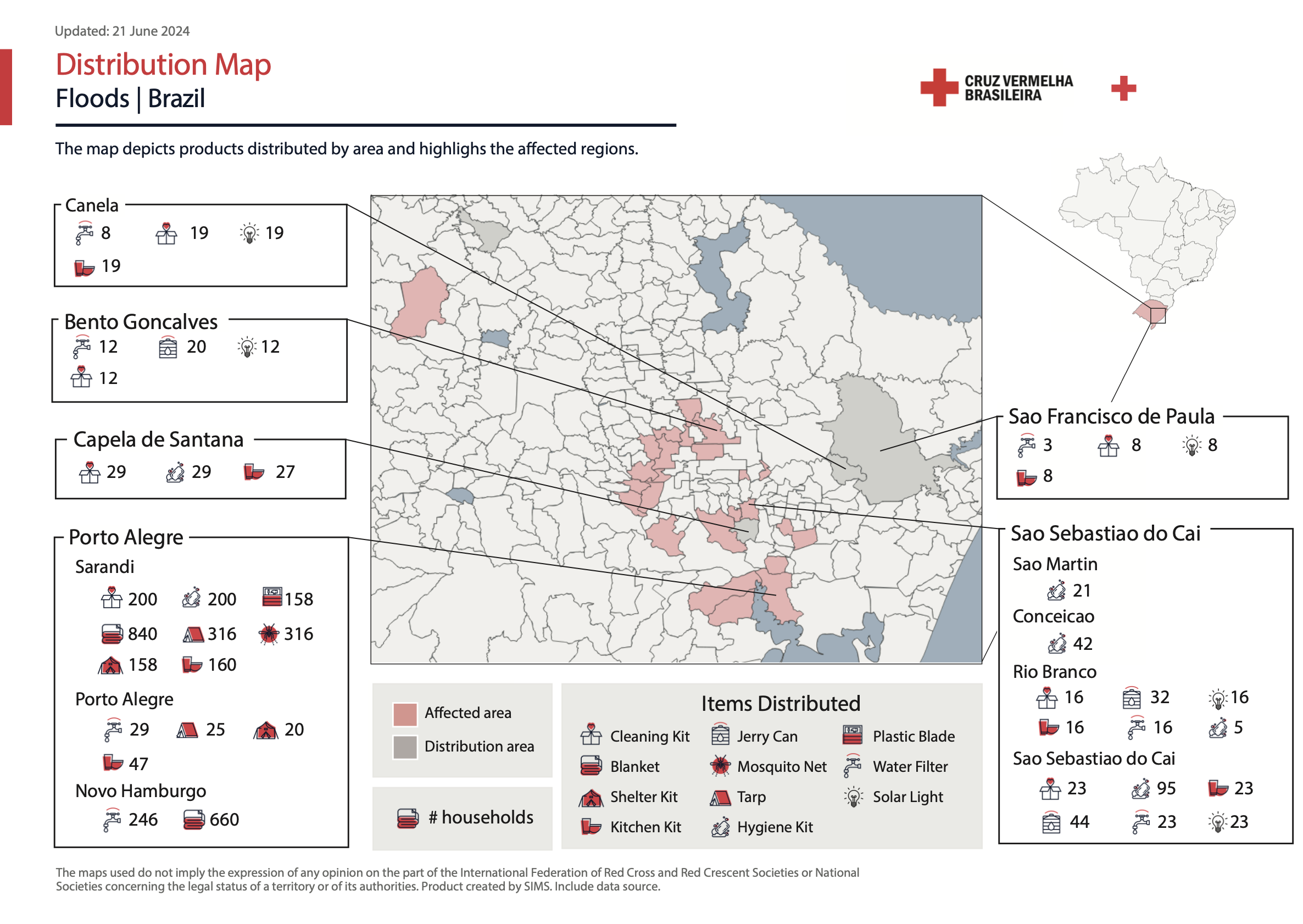

../../_images/4.8_3W_Brazil_Floods.png

Fig. 4.94 3W Map example: Brazil Floods Distribution Map#

What is needed:

  • A recent version of QGIS

  • Access to 3W data

  • IFRC icons for map making

  • Logos of the organizations involved

4.9.2.1. Getting the 3W required data#

A variety of factors can affect how much 3W information you have available. In the early weeks of a response, there may not yet be a structured process for gathering data from the different sectors and organizations involved. The IM Coordinator may recommend using a simple survey for sector leads and/or National Societies to capture an initial snapshot of who is doing what and where. As the operation becomes more organized, sector leads and National Societies can begin entering 3W data directly into a joined platform, which then can be used as the primary source for the 3W map.

If no formal 3W data collection system is in place, information might need to be extracted from SitReps and other reports produced by the operation team. Focus first on identifying the following:

  • What response activities are the National Society involved in, and where?

  • What response activities are being done by IFRC operation, and where?

  • Key situation overview figures, such as number of people affected by the disaster, number of deaths or injuries, number of houses damaged, number of geographical units affected (all of these data points can be modified based on the context of the disaster).

  • Make sure to note the data source you are using for key situation overview figures, and whenever possible to align the figures you are using to those used by the host National Society instead of using figures released by the media.

  • How many people or households are being reached by sectoral activities, and where?

It is normal that the initial dataset is limited. The 3W map will evolve and expand as additional information comes in.

Example: Hurricane Melissa November 2025 | Jamaica

The two 3W example maps below demonstrate how such products develop as new information becomes available. The first map, produced at the beginning of November by a single organization (MapAction), contains limited data and represents an initial community assessment. Three weeks later, the second map created jointly by MapAction and OCHA, includes significantly more information. In addition to expanded data, the map’s styling has also evolved. This progression is entirely normal; maps are expected to improve and become more detailed over time. What matters most is establishing an initial version that can be updated and refined as the response advances.

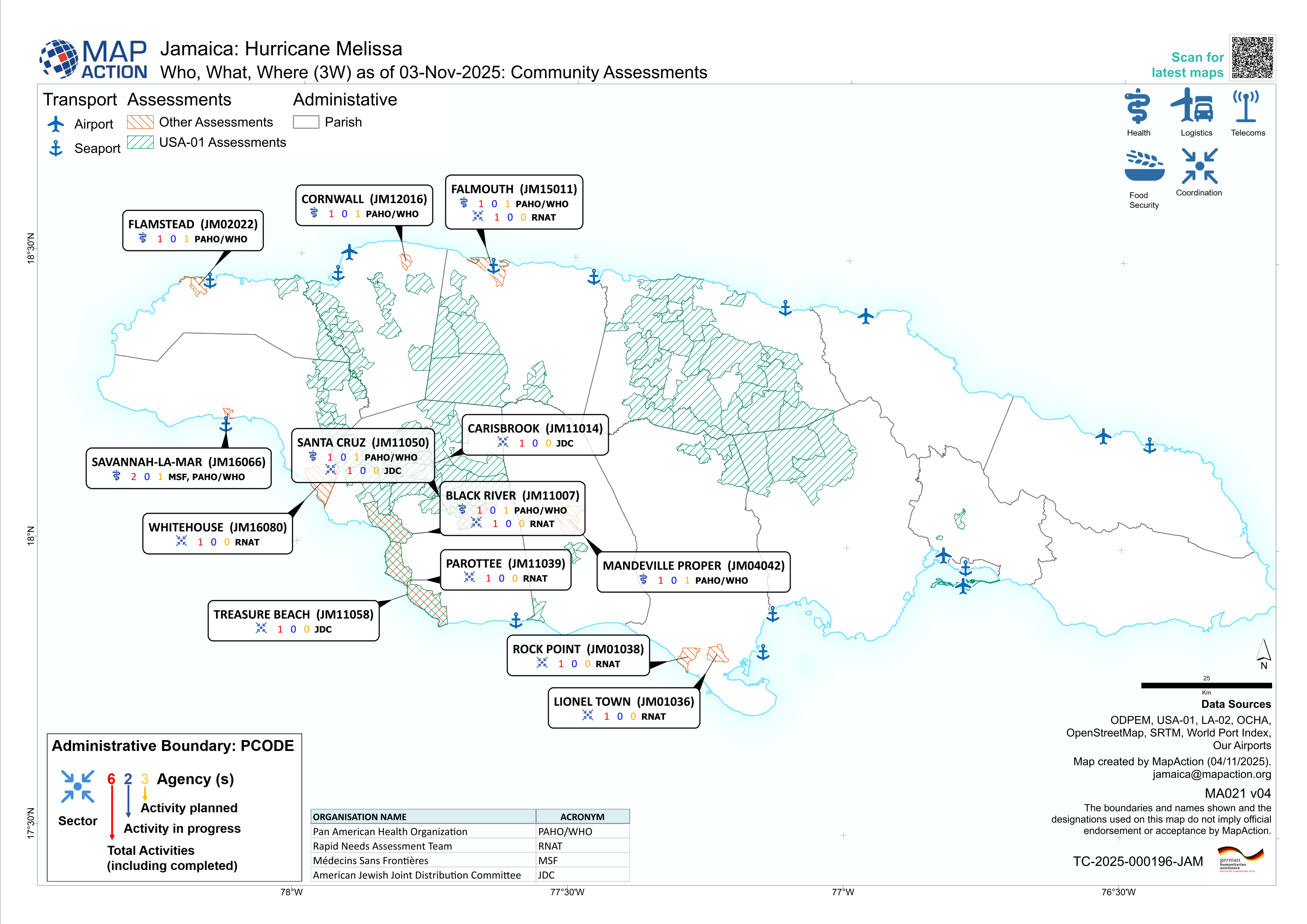

../../_images/4.8_3w_jamaica_03_11_2025.png

Fig. 4.95 Jamaica: Hurricane Melissa - Who, What, Where (3W) as of 03-Nov-2025: Community Assessments (Source: MapAction).#

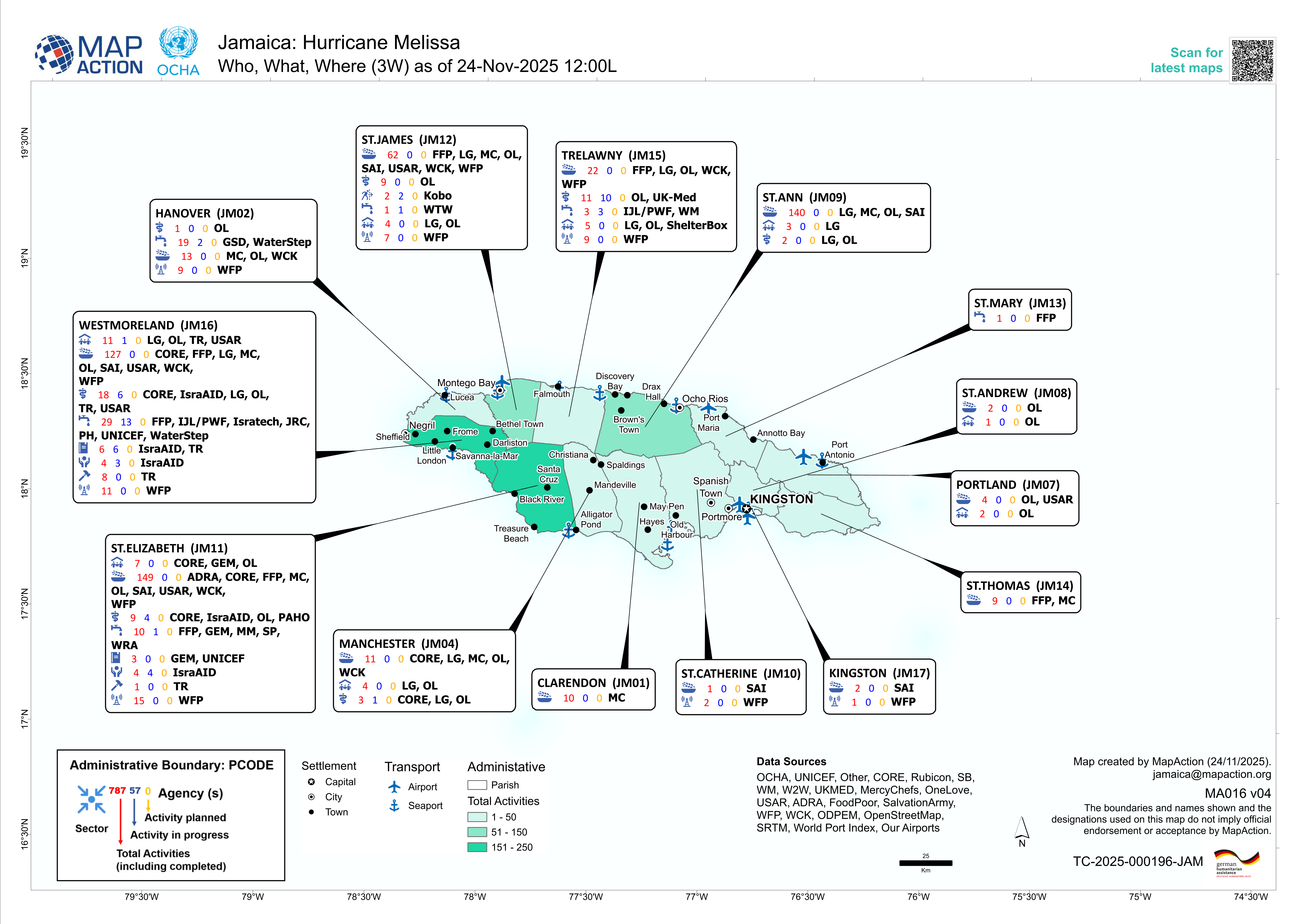

../../_images/4.8_3w_jamaica_24_11_2025.png

Fig. 4.96 Jamaica: Hurricane Melissa - Who, What, Where (3W) as of 24-Nov-2025 12:00L (Sources: MapAction, OCHA).#

4.9.2.2. 3W Map Creation#

  1. Add all the relevant spatial data. Used in probably every instance:

    • Administrative boundaries

    • Affected areas with the relevant disaster

    • Points of Interest (Airports, Ports, Cities)

    • Background map (OpenStreetMap is always a solid choice)

  2. Import the 3W Activity data

    • Add the 3W dataset to QGIS (mostly CSV or Excel)

    • Ensure that it contains information about the organization, activity type, and location.

How to import .csv or .txt

Delimited text import (.csv, .txt)

When working with 3W data, the most common format encountered is a delimited text file, such as .csv files (Comma Separated Values). These files contain tabular data, which can be opened by programs such as Microsoft Excel. They can contain geographical or positional information as point coordinates in separated columns (for example, latitude and longitude, or x- and y-coordinates), or as “Well Known Text” (WKT), which represents complex geometries, such as polygons or lines. In some cases, the table may not include any geographic information at all. When this happens, the file is simply added as a non-spatial table, allowing access to its attribute information without displaying it on the map.

Open Delimited Text Layer

Tip

To load data from spreadsheets such as Comma Separated Value (.csv) or Excel (.xlsx), the datasets need to have columns containing geometry - this is most often in the form of latitude (Y field) and longitude (X field), but might also be in other formats, such as WKT. In this case, you can also have complex geometries in your delimited text file.

../../_images/en_import_delimeted_text.png

Fig. 4.97 Import delimited text in QGIS 3.36.#

  1. Layer -> Add Layer -> Open Delimited Text Layer.

  2. Click on File name click on the three points and navigate to your CSV file and click Open.

  3. File Format: Here you can specify which delimiter is used in the file you want to import. In a standard CSV file, commas , are used. If this is not the case, select Custom delimiters. Here you can choose the exact delimiter used in your file.

Tip

To find out which delimiter is used you can open your .csv file in Notepad or Excel. There you can check which delimiter is used to separate the information.

../../_images/en_delimited_text_fileformat.png

Fig. 4.98 Adjusting the file format parameters while importing a delimited text layer into QGIS.#

  1. If your CSV file contains geometry, continue with Geometry definition: In this section, you specify which columns of the file contain the spatial information to georeference the data on the map. If the file has a column containing latitude and another with longitude data, you can use them to georeferenced the data. Check Point Coordinates if the .csv-file contains point data. Select for X field “LONGITUDE” and for Y field “LATITUDE”.

  2. Under Geometry CRS select the coordinate reference system (CRS). By default, QGIS will select the CRS of the project. If the file does not have spatial information choose the option No geometry (attribute only table).

  3. Click Add

Video: Opening delimited text files in QGIS

  1. Style the administrative boundaries with a transparent fill and choose an appropriate Stroke color and Stroke width to ensure they are clearly visible without obscuring underlying map content.

Styling administrative boundaries

Styling administrative boundaries (Polygons)

When creating 3W maps, administrative boundaries are always a key component. Most overview maps display disaster-related information aggregated by these boundaries. To visualize multiple administrative levels at once, each layer needs to be styled so that lower layers remain visible and the hierarchy between levels is clear. Often, this begins with adding the country outline and then progressively adding each subsequent administrative level, ensuring that the symbology distinguishes them without cluttering the map.

Only display the outlines of polygons

Now, we want to change the symbology of a layer so that only the outlines of the polygons are visible. This is necessary to make layers below this one visible.

To change the symbology of a single layer:

  1. Open the Styling panel and navigate to the symbology tab. By default, the symbology will be set to Single Symbol. This means that the same colors and contours will be applied to all the features in that layer.

  2. Click on Simple Fill.

  3. Click on the arrow to the right of Fill Color.

  4. Check the Transparent Fill option.

../../_images/en_30.30.2_vector_layer_styling_transparent.png
Video: Making the fill color transparent

Adjusting the Styles of Multiple Overlaying Layers

Ordering the layers

  1. Import all the administrative boundaries into your QGIS-project that you want to work with (e.g. Admin 0-2).

  2. One option is to order the layers in the Layers panel so that the Admin0-layer sits on top, followed by Admin1 and Admin2. At first, this might look weird because Admin0 will cover everything.

../../_images/en_30.30.2_changing_layer_style_1.png

Fig. 4.99 Order the layers and navigate to the styling panel of the topmost layer#

  1. Change the symbology of the Admin0 layer by opening the styling panel and navigating to the Symbology tab.

  2. Click on Simple Fill to open the style options.

  3. Expand the Fill Color menu and check the Transparent Fill option. This will make only the boundaries visible, so we will be able to see the layer under this one.

  4. Choose a Stroke Color, and adjust the Stroke Width.

  5. Click OK.

  6. Repeat the same process for the Admin1 layer, using the same color as for Admin0 (it will be in “Recent colors). Adjust the stroke width so that it differs from Admin0, ensuring that the administrative levels remain visually distinct.

  7. Now we can see the boundaries of the country and its states, and behind that we can see the districts (Admin2).

  8. Let’s make the district layer’s style consistent with the others.

  9. Choose a Fill Color.

  10. Use the same Stroke Color as for Admin0 and Admin1, but make the width even thiner and the Stroke Style a Dash Line.

  11. Click OK and look at your map: hopefully it’s starting to look nicer!

../../_images/en_30.30.2_changing_layer_style_3.png

Fig. 4.100 The styling of a vector data consists of the color and the outline.#

Video: Adjusting the style for multiple layers

  1. Style the disaster-related information by selecting a color ramp that fits the context. One common approach is to create a choropleth map using Graduated styling, which visually represents variations in impact or case numbers across administrative areas.

Styling disaster-related information

Creating a Choropleth Map (“Gradudated Styling)

If a layer contains numeric values that are continuous, they can be organized in intervals. These intervals can be displayed in graduated colors. In this example, colors are assigned to Admin1 polygons based on the total population of each State.

  1. Open the Symbology options and choose Graduated.

  2. Select the value you want to use to assign colors, in this case, it will be total_pop.

../../_images/en_30.30.2_symbology_variable_ranges.png

Fig. 4.101 With variable ranges, select Graduated symbology and choose the attribute with continuous values#

  1. Click on Classify to list all values divided in classes.

  2. Choose how many classes you want the data to be divided into ‒ let’s say 4. You can also assign different Modes. We usually work with Equal Count or Equal Interval depending on our data.

  3. By default, the color ramp will be red. However, red is not the right color to use for population count, as it is generally used to communicate negative elements, such as food insecurity or cholera cases.

  4. Click on the arrow next to the color ramp to choose another combination of colors - let’s say a color ramp from white to blue.

  5. Click Apply to preview the look of your layer, then OK.

../../_images/en_30.30.2_symbology_variable_ranges_2.png

Fig. 4.102 You can categorize the continuous values into classes and assign a color ramp .#

The following map shows the most populated states of Nigeria using a graduated color categorization. These types of maps are called Choropleth maps.

../../_images/en_map_design_example_variable_ranges.png

Fig. 4.103 A map showing the population of Nigerian states.#

Video: How to create a choropleth map

  1. Add labels to the Admin boundaries (at the level of interest) for clearer identification.

Label administrative boundaries

Single Labels

Creates a single label style for every feature in the layer. You can select an attribute (value) which will be displayed. For example, the name of a district. You need to know which attribute displays the information you want to display. Look at the attribute table of the dataset to find it out.

../../_images/labels_single_labels_example_nga_adm1.png

Fig. 4.104 Single labels for each administrative region (adm1) in Nigeria. The reader is able to assign each label to the respective administrative entity.#

../../_images/en_30.30.2_assigning_value_to_labels.png

Fig. 4.105 Assigning the correct attribute value in the labeling options. QGIS needs to know which attribute (column) of the attribute table should be displayed as a label. In this case, we want the name of the administrative region (ADM1_EN) to be displayed.#

Adding Single Labels to a Layer

  1. In the styling panel, click on the Labels-tab underneath the Symbology tab.

  2. Select Single labels.

  3. Value is where you choose the attribute that will be displayed as a label. For example ADM1_EN will display the English names of Nigerian states for each feature in the data set.

  4. Let’s change the font: Open the font dropdown menu and select Arial. Make the text Bold in the Style dropdown menu. Change the color by clicking on Color, and change the Size to 8 pt.

  5. Let’s add a white buffer around the label. In the Labels tab, you will find a list with different options to style the labels. Right now, we are in the Text menu. Select Buffer and check the Draw text buffer option. This will make the labels stand out more on dark or crowded maps.

  6. Click Apply and OK.

../../_images/en_30.30.2_setting_up_labels.png

Fig. 4.106 Setting up labels in QGIS 30.30.2#

Video: How to add single labels

Attention

Single Labels are not always useful. For example, if the dataset is too big, or you only want to display certain features in the dataset. In the example below, there are too many settlements to display labels for each settlement. Instead, it might be useful to only display the regional and national capitals. For such a use case, Rule-based Labeling is ideal.

../../_images/single_labels_bad_example.png

Fig. 4.107 Single Labels were selected to display the names of the settlements (red dots). A map with so much text information is unreadable and the information can hardly be understood.#

  1. Set up a new Print Layout.

    • Add a new map by clicking on the Add map-button.

    • Position the main map frame at the center of the page and size it generously so that place names, symbols, and activity markers are easy to read.

    • Add a header using the Add Label-tool. It should contain the following information:

      • The title (e.g. Sudanese Red Crescent Response)

      • The type of disaster or emergency

      • The geographic location of the disaster

      • The last updated date to indicate the currency of the data. Because operations evolve quickly, the date is especially important for users who need to understand how recent the information is.

    • Add Organizational logos (e.g., International Medical Corps, Relief International, International Rescue Committee) using the Add image-tool to ensure that each active organization can be easily identified on the map.

    • Icons which describe the specific activity. These can also be added using the Add image-tool. Make use of the IFRC icons for map making.

    • A small overview map to help situate the disaster-affected area within a broader geographic context.

Note

Multiple text boxes can be used to display the header in different font sizes, helping to clearly separate different layers of information. If all content should remain within a single label box, Render as HTML can be applied to format and style the text as needed.

Starting the Print Layout

Open the Print Layout

  1. Go to Project > New Print Layout > enter a name for the new print layout > click OK

  2. A new window with a blank print layout will appear.

../../_images/en_30.30.2_create_print_layout.png

Fig. 4.108 Create a new Print Layout#

Map Composition

A good map guides the reader in understanding the information available on the map, makes the information easily accessible, and is not overloaded with information.

In general, there are a few things to keep in mind when creating a map:

  • The main map should cover the largest portion of the page and be centred.

  • A complete map must have:

    • A meaningful title

    • All the sources used

    • A legend explaining symbols and color schemes.

    • A scale bar

    • A north arrow

    • and necessary other information to contextualize the information presented on the map.

  • This additional information, such as the title should be scaled accordingly.

    • Titles should be large so the reader can identify it as the main topic of the map.

    • Additional information should be smaller and moved out of the main focus of the page (e.g. at the bottom, to the sides, or in the corners).

  • A well-structured page layout helps the reader discern the different information on the map and makes it easier to know where to look for certain information. Frames and boxes can structure the page layout. For example, a legend can be put on the bottom or to the right of the map.

  1. Areas of operation for each organization

    • Place the logos of each organization within the districts where they are active.

    • Add activity icons to indicate the specific types of work each organization is carrying out in those districts.

    • To illustrate the link between organization logos, activity icons, and their corresponding areas, arrows can be added to the map. Using this feature helps clearly emphasize the relationships and improves overall readability.

How to add arrow item

The arrows can be added from the left-side panel in the Print Layout. Click and drag on the layout to draw it, then use the Item Properties panel to adjust the arrow’s style, thickness, color, and direction. Arrows can be moved or resized like any other layout item, allowing you to visually connect map features, icons, or labels.

Caution

Add labels and logos where needed, but avoid cluttering the map with unnecessary text or symbols. Organize map elements by topic, importance, and visual hierarchy to keep the layout clean and structured. Items can be reordered in the Item panel on the upper right side. Once added as images, logos and activity icons can be positioned directly on the map using drag-and-drop. Place them in meaningful locations so they do not overlap or obscure other important information.

Note

All the necessary information about the Print Layout Composer can be found here

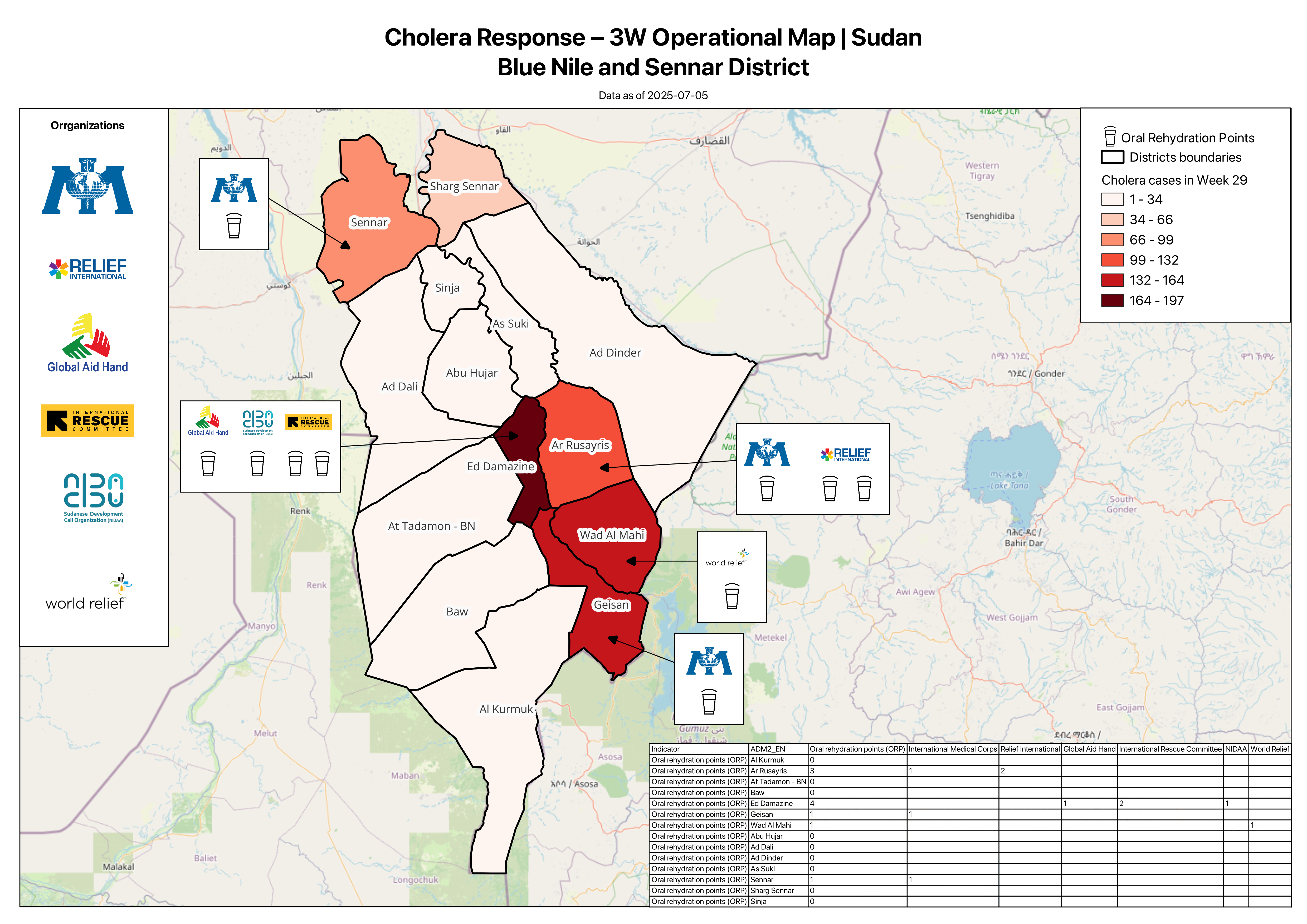

../../_images/4.8_3W_own_example.png

Fig. 4.109 A simple example of a 3W map showing the distribution of Oral Rehydration Points and the active organizations operating in south-eastern Sudan.#

4.9.3. Epidemological overview map#

4.9.3.1. Introduction#

Epidemiological overview maps are among the most frequently requested analytical products during the early stages of an outbreak response. These maps synthesize when, where, and how intensely disease transmission and mortality are occurring across affected areas. By visualizing weekly case incidence and identifying whether transmission is increasing, stable, or decreasing in each location, responders gain rapid insight into the evolving dynamics of the epidemic. A related view, incorporating weekly deaths and mortality rates, supports assessment of disease severity and potential gaps in access to care. These outputs are routinely included in Situation Reports, operational updates, and epidemiological briefings, and serve as key reference tools during coordination meetings. In this section, we will explore the essential components of epidemiological overview maps and demonstrate how to produce them in QGIS using simulated weekly case and mortality data.

In this tutorial, you will learn how to create a multivariable map to generate an epidemiological overview of a cholera outbreak in Somalia. Using a fictional dataset with weekly infection counts and death rates, you will visualize the situation for a selected week by applying several QGIS visualization tools.

4.9.3.2. About the Dataset#

The dataset contains epidemiological parameters for Somalia at the regional level, covering a 12-week period during a cholera outbreak. The parameters include weekly new cases, weekly cumulative cases, and the weekly death rate. Download the dataset here.

4.9.3.2.1. Fields used in this tutorial#

Field

Contents

weekX_inf_new

Count of new weekly infections in week X of the outbreak

weekX_inf_cul

Cumulative count of infections in week X

weekX_dc

Count of weekly deaths in week X

4.9.3.2.2. Data preparation#

First, we need to load the dataset into QGIS:

Import the data

  1. In the top menu, go to Layer → Add Layer → Add Vector Layer

  2. Next to the File name field, click the three dots
    and browse to your Som_outbreak_epi file and click Open.

  3. Click Add. The layer will now appear in your Layers panel and the polygons will display on the map canvas.

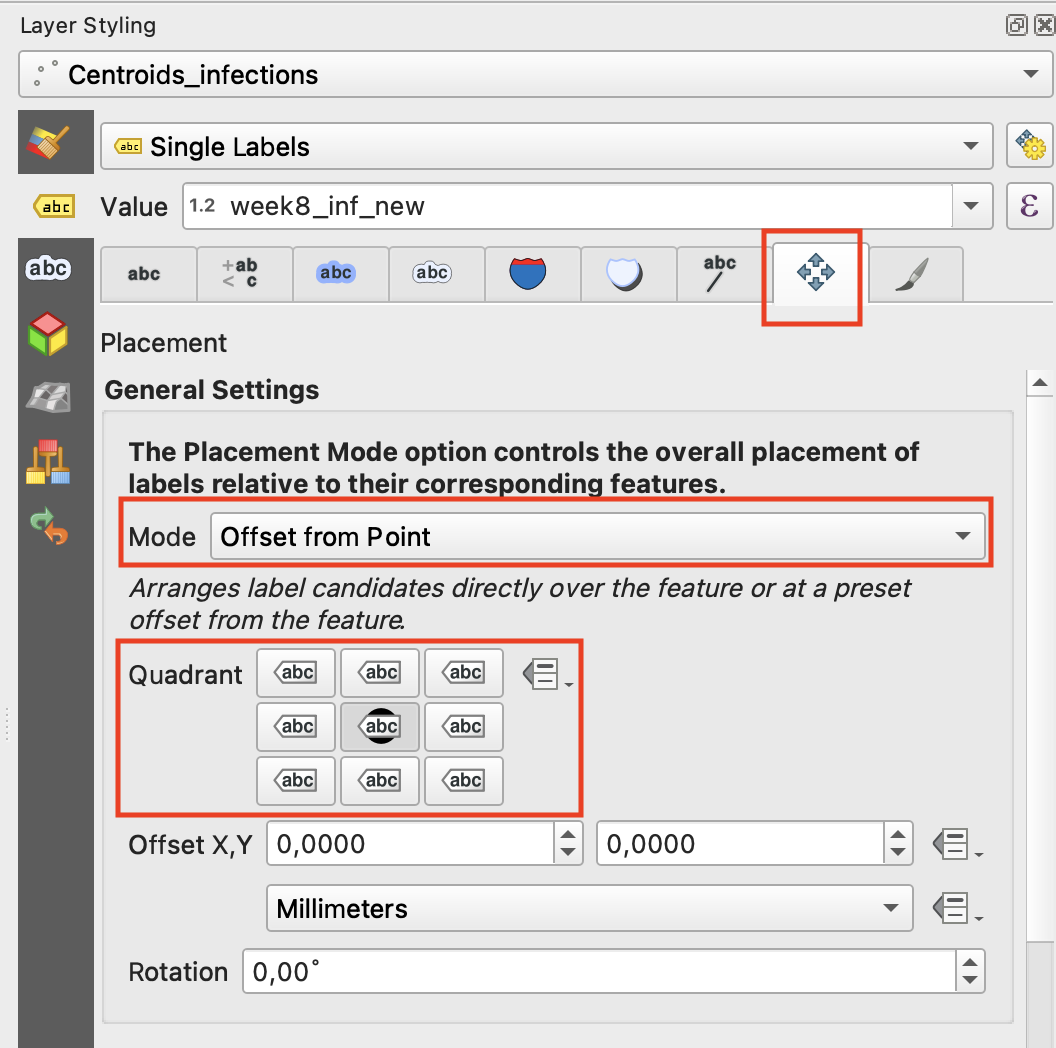

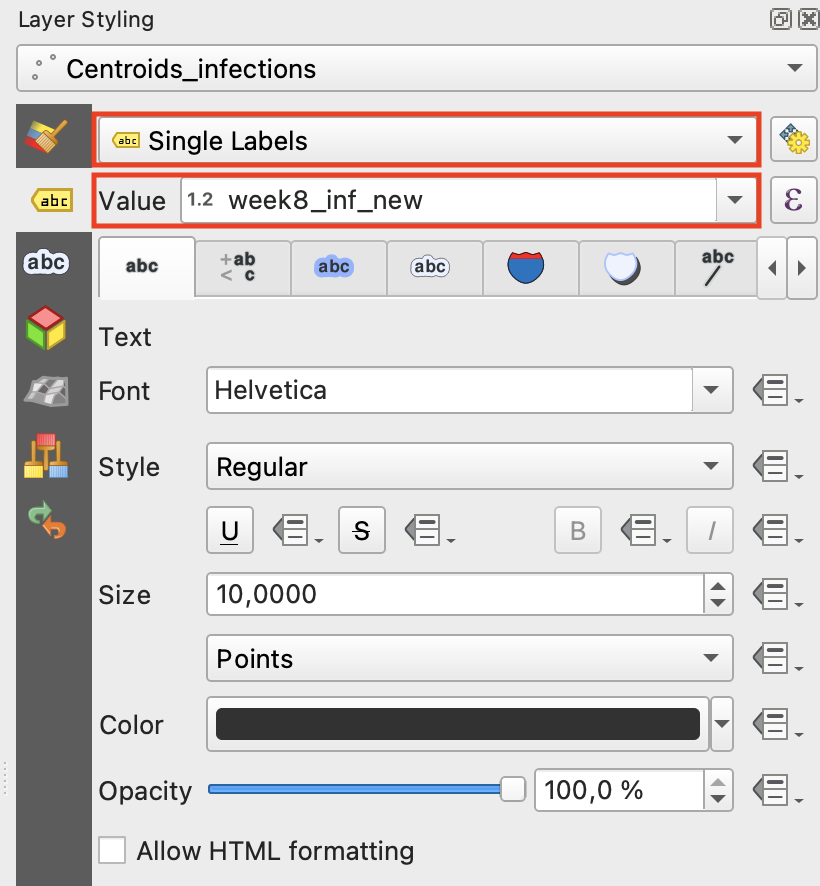

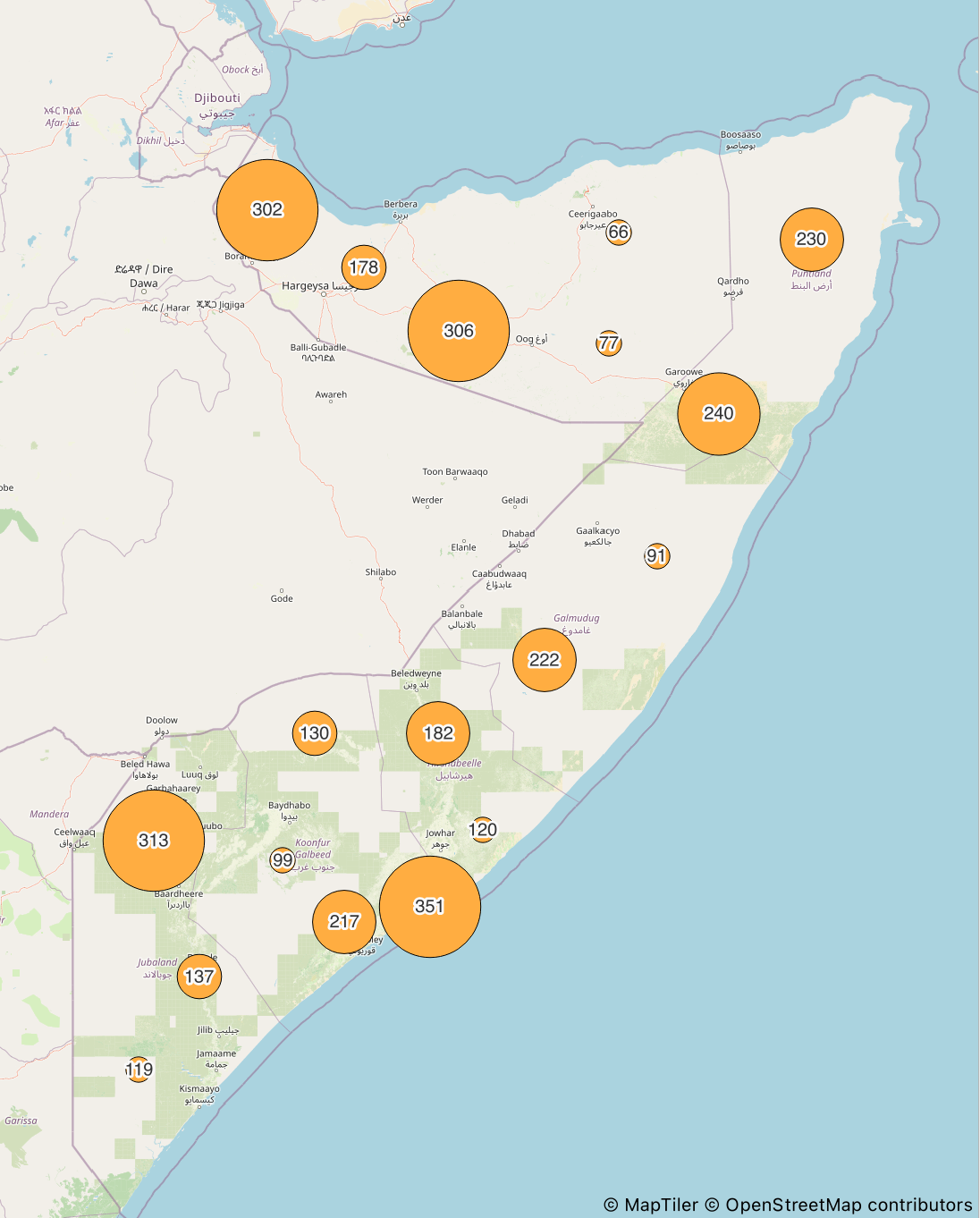

4.9.3.4. Display the current infection trend with polygon colours#

Now that we have visualized our first epidemiological parameter (“weekly new cases”) using proportional circle sizes, we can use our polygon layer Som_outbreak_epi to display additional relevant information. Alongside the weekly infections, we want to show the infection trend from week 7 to week 8 for each regi to analyze, whether weekly infections are rising, falling, or stagnating. To achieve this, we first need to generate a new field using the Field Calculator:

Generate a infection trend field with the field calculator

  1. Open the field calculator

    • Open the attribute table of your polygon layer Som_outbreak_epi by right clicking on it and select “Open Attribute Table” in the pop up window.

    • In the attribute table open the Field Calculator by clicking on the symbol at the top of the window.

  2. Create a new field diplaying infection trend

    • In the Field Calculator interface keep “Create a new field” selected and choose infection_trend as “Output field name”. As “Output field type” choose “Text (string)”

    • In the “Expression” panel enter the following code chunk:

       CASE
       WHEN "week8_inf_new" > "week7_inf_new" THEN 'increase'
       WHEN "week8_inf_new" < "week7_inf_new" THEN 'decrease'
       ELSE 'no change'
   END

    For every polygon this code fills the newly generated field with “increase”/”decrease” if the week 8 value is higher/lower that the one of the previous week and with “no change” if both values are equal.

    • Click on “Ok” to generated the new field.

../../_images/mod_4_trend_calculation.png

Fig. 4.114 Configuration of the Field Calculator interface to generate the infection_trend field#

With your newly generated infection trend field you are now able to display the trend direction for every region with polygon colour:

Vizualize the current infection trend

  • Open the Layer Styling Panel and select your polygon layer layer Som_outbreak_epi and select Symbology.

    • At the top of the Symbology window, change the style from Single Symbol to Categorized

    • As Value, choose infection trend to display the calculated trend direction.

    • Click “Classify” to execute the classification. Choose coulours of your liking for the values “decrease” and “increase” and “no change” (e.g. green, red and grey) by double clicking on the coloured squares in the panel displaying the classes.

    • As classification mode choose “Equal Interval” next to “Mode”.

    • For nicer visuals you can optionally also slightly reduce the opacity of the layer by adjusting it in the “Symbol” dropdown menue in the “Symbology” panel

Now display you polygon layer Som_outbreak_epi together with you point layer Centroids_infections (centroids on top) to display all generated information in one map view. The result should look something like this (colour may vary):

../../_images/mod_4_infectionmap_example.png

If you want to generate a proper map layout of your epidemological overview map follow the descriptions outlined in The Print Layout Composer.

4.9.3.5. Creating a map visualising weekly deaths and mortality rate#

After we created our multi variable map with information about the development of infections we can transfer the used steps to also create a map providing information about weekly deaths and the current mortality rate of the outbreak. The basic information needed is stored in the weekX_dc fields of your polygon layer Som_outbreak_epi, which provide weekly death counts for every week of the cholera outbreak.

4.9.3.5.1. Create circles proportional to weekly infections#

  • To create a point layer that visualizes weekly death count with proportional circles repeat the same steps that you learned previously when visualizing the new weekly infections. The only change you need to implement is changing the “Value” dropdwon menue in the Symbology panel from week8_inf_new to week8_dc to link the death count to the point sizes.

4.9.3.5.2. Display the current mortality rate with polygon colours#

Alongside the weekly death count, we want to show the mortality rate from week 7 to week 8. To achieve this, we first need to generate a new field using the Field Calculator. beforehand make sure to create a duplicate layer of Som_outbreak_epi to dont overwrite you previous vizualisation. Call the dupolicate layer Som_outbreak_mort.

Generate a moertality rate field with the field calculator

  1. Open the field calculator

    • Open the attribute table of your polygon layer Som_outbreak_mort by right clicking on it and select “Open Attribute Table” in the pop up window.

    • In the attribute table open the Field Calculator by clicking on the symbol at the top of the window.

  2. Create a new field diplaying infection trend

    • In the Field Calculator interface keep “Create a new field” selected and choose “mortality_rate” as “Output field name”. As “Output field type” choose “Decimal number (real)”

    • In the “Expression panel” enter the following code chunk:

     "week8_dc" / "week8_inf_new" * 100

    For every polygon this code divides the weekly death count of week 8 by the total infections and multiplies by 100 to calculate the mortality rate in percent. The resulting value is stored in the newly generated field mortality_rate

    • Click on “Ok” to generated the new field.

../../_images/mod_4_mr_calculation.png

Fig. 4.115 Configuration of the Field Calculator interface to generate the infection trend field#

With your newly generated moertality rate field you are now able to display the value for every region with polygon colour:

Vizualize the current mortality rate

  • Open the Layer Styling Panel and select your polygon layer layer Som_outbreak_mort and select Symbology.

    • At the top of the Symbology window, change the style from Single Symbol to Graduated

    • As Value, choose mortality_rate to display the calculated percentage.

    • Click “Classify” to execute the classification. Choose a colour palette of your liking, e.g. “Reds”.

    • As classification mode choose “Equal Interval” next to “Mode”.

    • For nicer visuals you can optionally also slightly reduce the opacity of the layer by adjusting it in the “Symbol” dropdown menue in the “Symbology” panel

Display both the current death count and mortality rate layers together to get an overview of the situation. The result should look something like this:

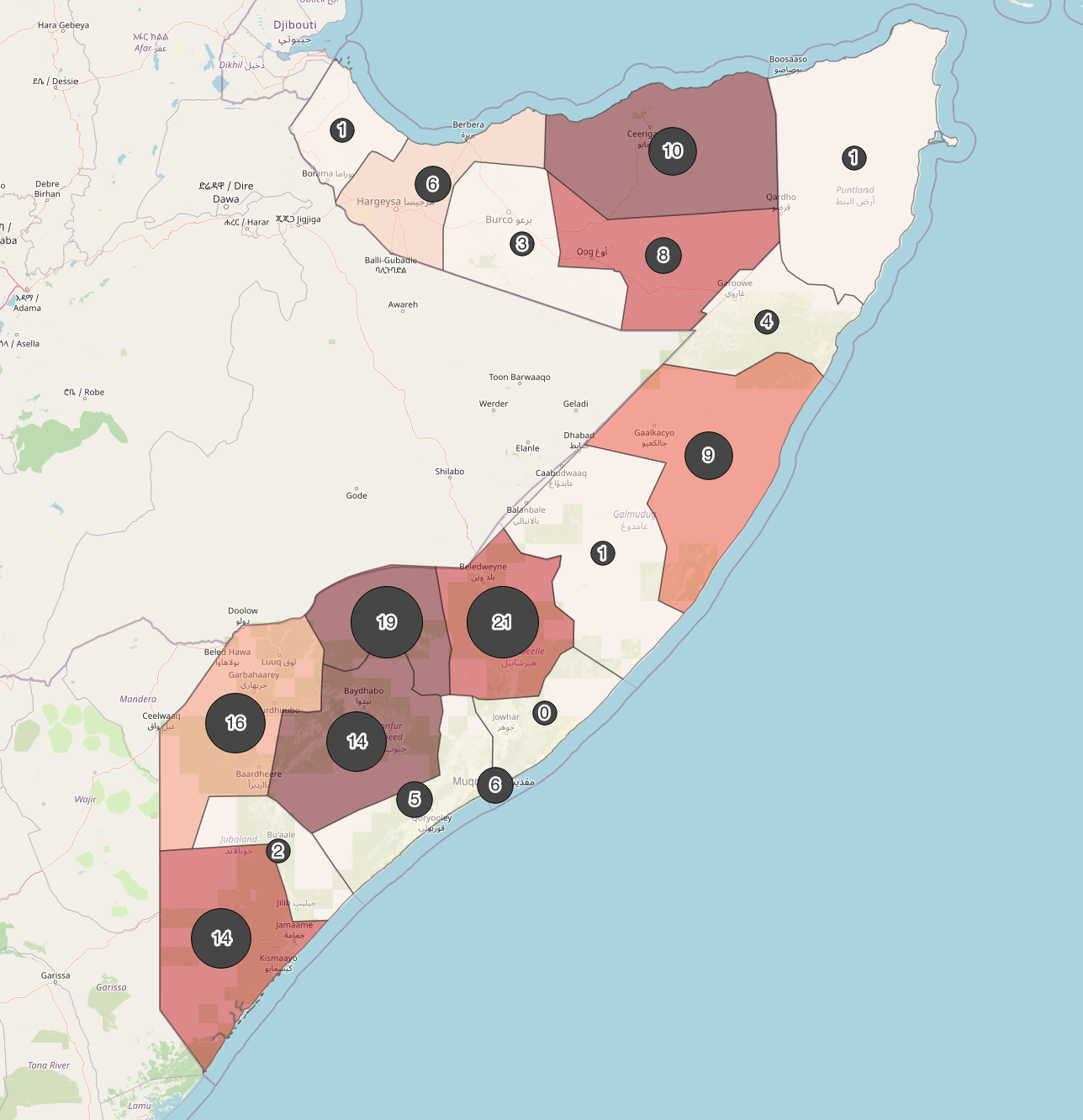

../../_images/mod_4_deathratemap_example.png

If you want to generate a proper map layout of your epidemological overview map follow the descriptions outlined in The Print Layout Composer.

Contents
