Road Thematic Accuracy

Road Thematic Accuracy shows the agreement of road-specific attributes between OSM data and data from the Basis-DLM.

Methods and Data¶

Extrinsic approach

This indicator isn’t intended to assess the quality of the OSM data. It shows the agreement between OSM and a reference dataset, without assuming that either dataset is superior to the other.

The indicator is only available for the topic Roads (cars), and only within the borders of Germany.

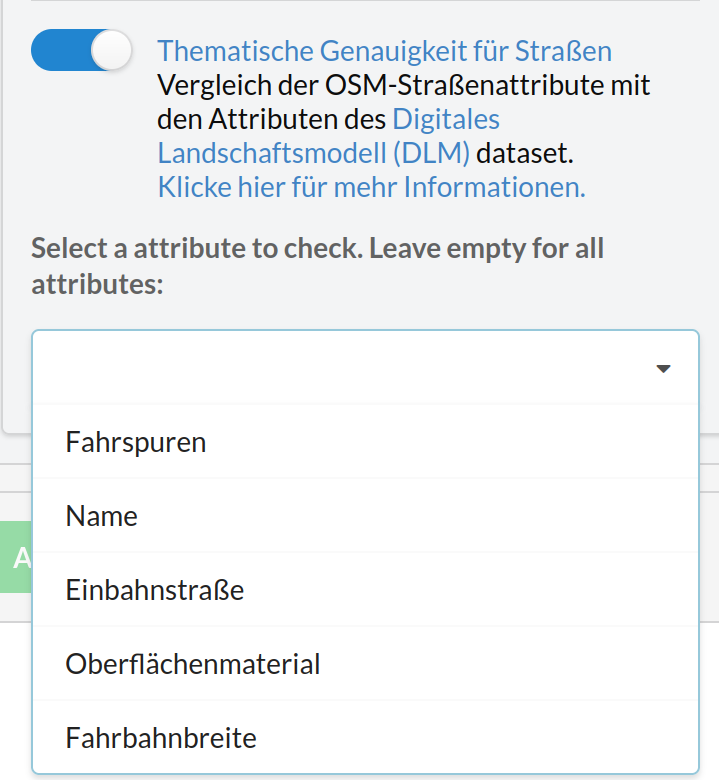

You can select one attribute per query.

OSM roads and DLM roads are matched using map-matching-2, using a model based on a Markov decision process. This assigns each DLM road segment none, one, or several OSM road segments. If no OSM road segment could be assigned, the DLM road segment is excluded from the calculation. The result description states what percentage of the total DLM road length could be assigned. If exactly one OSM road segment could be assigned to the DLM road segment, the entire length of the DLM road segment is carried over into the result according to the attribute comparison described below. If several OSM road segments are assigned to a DLM road segment, the length of the DLM road segment is divided by the number of assigned OSM road segments. The resulting length is then carried over into the result for each OSM road segment, according to the attribute comparison described below. For matched roads, we first check whether each attribute is present in both datasets. If it is, the values are compared. By default, the comparison is direct, though there are a few exceptions:

Name¶

For the name, the Levenshtein distance was calculated, which lets us compare how similar the two names are. Names were counted as matching if their Levenshtein ratio was above 0.85.

Surface¶

For surface, OSM tags and DLM tags are matched against each other. All OSM tags not included in the following table are counted as non-matching.

Width¶

For width, a tolerance of 1 m was applied.

Oneway¶

To check the direction of travel, the vector of both geometries is calculated. If both have the same sign, this is counted as a match.

Reference dataset¶

The Basis-DLM is published by the Bundesamt für Kartographie und Geodäsie (Federal Agency for Cartography and Geodesy) and describes the topographic features of the landscape as well as the relief of the Earth’s surface in vector format. Features are defined by their spatial location, their geometry type, descriptive attributes, and relationships to other features. Every feature has a unique identification number within Germany. The roads from this dataset are used for this indicator.

Result¶

The figure consists of one or two bar charts. The chart on the left shows what proportion of the total length of all DLM roads that could be matched to OSM roads have the selected attribute. This distinguishes between the attribute being present only in the DLM, only in OSM, in both, or in neither. Where there are roads for which the attribute is present in both datasets, a further bar chart is shown on the right. This shows, for that road length where the attribute is present in both datasets, how much of it matches or doesn’t match. If the attribute isn’t present in both datasets for any road, the right-hand side of the figure remains empty.

Example¶

In this example figure, agreement for the road attribute Name was checked. The blue bars show the presence of the attribute in each dataset (OSM and Basis-DLM). The purple bars show the agreement between the two datasets, visualising the similar and differing attributes in count and percentage. In the selected region, the attribute Name exists in both OSM and DLM data for the most part, though it appears slightly more complete in OSM. It’s also clear that the attribute shows high agreement between the datasets. In general, agreement doesn’t allow direct conclusions to be drawn about data quality. Frequent differences in the lanes attribute, for example, are strongly shaped by differing mapping conventions.

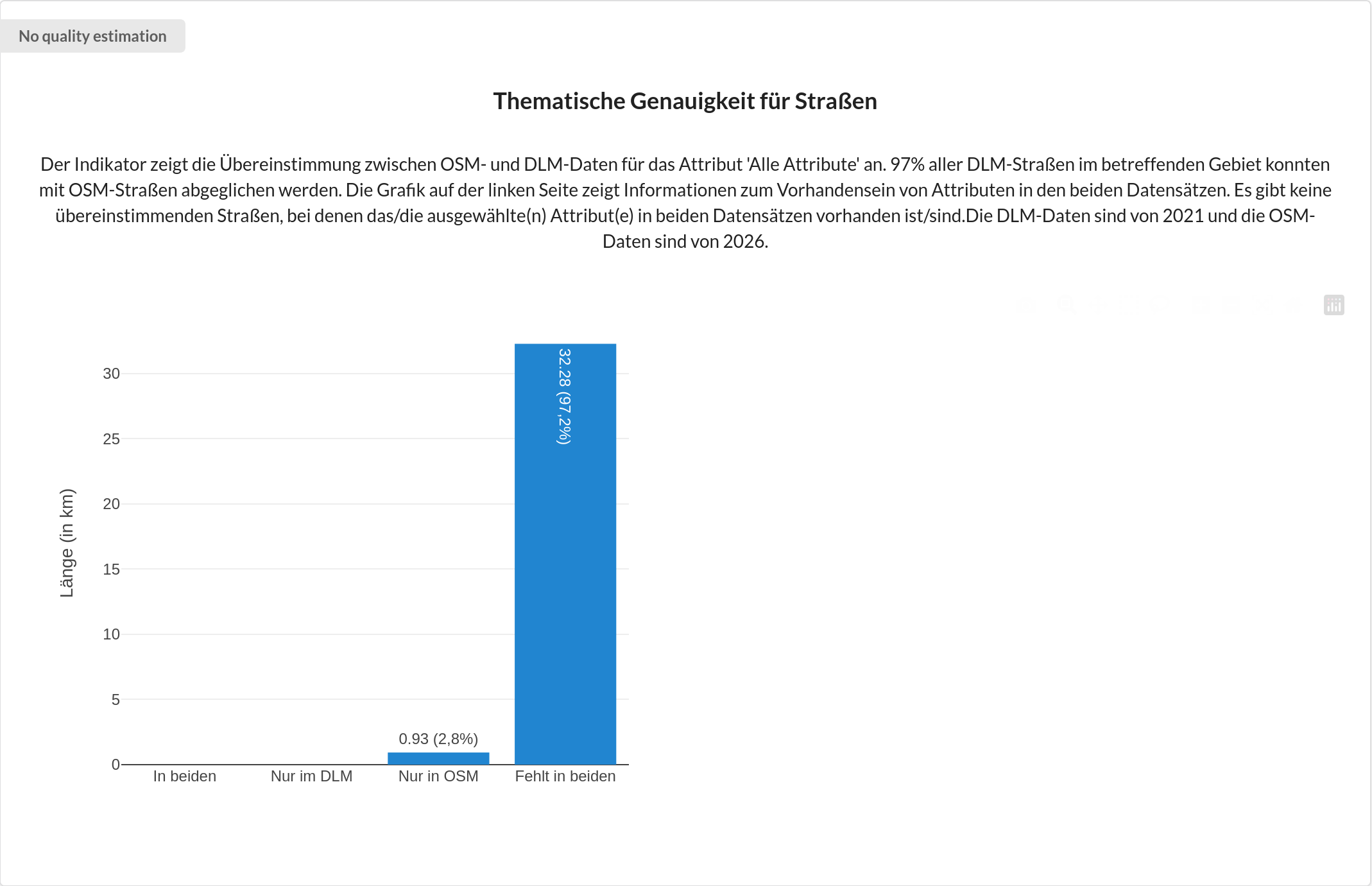

In this example figure, agreement across all attributes was checked. It’s clear that for almost all roads, not all attributes are set. Some roads from OSM have all attributes. Since there are no roads for which all attributes are present in both datasets, the right-hand bar chart showing attribute agreement isn’t displayed. In every federal state, at least one attribute is generally not captured, so there are few to no roads in the DLM with all attributes present. This selection can therefore mainly be used to check how many OSM roads have all attributes.

Limitations¶

Known limitations include:

• Pedestrian roads weren’t assigned

• Motorways are represented differently in the two datasets. In the DLM, every lane is recorded as its own carriageway axis, and the centre line of the entire section is also recorded as a carriageway axis. In OSM, this is often mapped as one road per direction of travel, with the number of lanes added as an attribute.

• it can also happen that DLM road segments are incorrectly assigned to railway tracks, if these are located between two carriageways

• because of the assumption described above for DLM road segments with several assigned OSM road segments, part of the road length gets assigned to a different OSM road

References¶

• A. Wöltche, “Open source map matching with Markov decision processes: A new method and a detailed benchmark with existing approaches”, Transactions in GIS, vol. 27, no. 7, pp. 1959–1991, Oct. 2023, doi: Wöltche (2023).
