The main objects of the research were the flood extent, road network , the administrative boundaries from the municipalities and hospitals.

The study area is located in the Federal Unit of Rio Grande do Sul, within the “central core” of the Porto Alegre Metropolitan Region. It includes 9 municipalities classified as dense urban settlement according to the Global Human Settlement SMOD dataset.

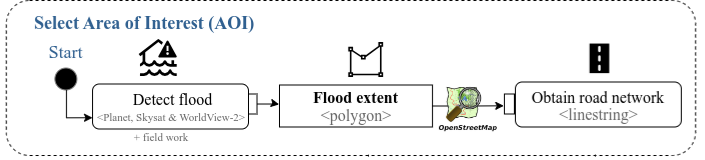

Fig 2. The lane of select area of interest used the flood extent to filter the road network
The study area is located in the Federal Unit of Rio Grande do Sul, within the central core of the Porto Alegre Metropolitan Region. It includes 9 municipalities classified as dense urban settlement according to the Global Human Settlement SMOD dataset
Figure 1
R code to create interactive map based on leaflet
library(leaflet.extras)
library(leaflet)
leaflet() |>
  addTiles()  |>
  addProviderTiles("OpenStreetMap", group = "OpenStreetMap")  |>
  addProviderTiles("Esri.WorldImagery", group = "Esri.WorldImagery")  |>
  addPolygons(data=municipalities_ghs_leaflet,
                      weight = 2,
                      color = "black",
                      fillOpacity = 0,
                      dashArray = "3",
                      popup = ~paste0( "<b>Municipality: </b>", shapename, "<br/>",
                                      "<b>Population affected: </b>", Pop.Aff, "<br/>",
                                      "<b>PIB per capita: </b>", GDP, "<br/>"),
                                      group= "Municipalities (CMA)") |>
  addPolygons(data=urban_center_4326_core,
                    fillColor = "yellow",
                    opacity = 0.2,
                    weight = 2,
                    color = "black",
                    dashArray = "1",
                    group= "Dense Urban Center Settlment",
                    popup = ~paste0( "<b>Settlment ID: </b>", gid, "<br/>",
                    "<b>Population: </b>", round(pop_2020), "<br/>",
                    "<b>Building Surface (m2): </b>", round(bu_m2_2020))) |>
                    addPolygons(data=flooding_simplified_porto_united,
                    fillColor = "#dec8b7ff",
                    fillOpacity = 0.6,
                    weight = 1,
                    color = "#4b2609",
                    dashArray = "1",
                    group= "Flood extent") |>
  addCircles(data=filter(hospital_bed_aux_leaflet, nat_jur_cat=="Public"),
                    radius=10,
                    weight=15,
                    opacity = 0.6,
                    color = "#6da991ff",
                    popup= ~paste0("<b>Hospital: </b>", stringr::str_to_title(ds_cnes), "<br/>",
                    "<b>Type Jur: </b>", nat_jur_cat, "<br/>",
                    "<b>Nature Jur: </b>", stringr::str_to_title(nm_razao_s), "<br/>",
                    "<b>UCI Beds: </b>", beds,"<br/>",
                    "<b>Risk: </b>", tp_risco),
                    group="Hospital (public)")  |>
  addCircles(data=filter(hospital_bed_aux_leaflet, nat_jur_cat=="Private"),
                    radius=10,
                    weight=15,
                    opacity = 0.6,
                    color = "#3f98c3ff",
                    popup= ~paste0("<b>Hospital: </b>", stringr::str_to_title(ds_cnes), "<br/>",
                    "<b>Type Jur: </b>", nat_jur_cat, "<br/>",
                    "<b>Nature Jur: </b>", stringr::str_to_title(nm_razao_s), "<br/>",
                    "<b>UCI Beds: </b>", beds,"<br/>",
                    "<b>Risk: </b>", tp_risco),
                    group="Hospital (private)")   |>
  addRasterImage(building_density_local_aoi_4326_masked,
                    opacity = 0.5,
                    group="Building density") |>
                    addLayersControl(
                    baseGroups = c("OpenStreetMap",
                    "Esri.WorldImagery"),
                    overlayGroups = c("Municipalities (CMA)",
                    "Hospital (public)",
                    "Hospital (private)",
                    "Dense Urban Center Settlment",
                    "Flood extent",
                    "Building density"),
                    options = layersControlOptions(collapsed = FALSE)) |>
                    hideGroup(c("Dense Urban Center Settlment",
                    "Building density"))

Import data

Directly to PostgreSQL

We used the ogr2ogr program from GDAL (GDAL/OGR contributors 2025) and the shp2pgsql2 from PostGIS 3 command to import the data directly to PostgreSQL. The parameters from the docker were docker as user (-U), 25432 for the port (-p) and localhost for the host (-h). We transformed the original coordinate reference system (CRS) 54009 to 4326. We also include three troubleshootings to solve potential errors found during this step.

[AoI-1] How to import using ogr2ogr and shp2pgsql
# Urban Center to select core metropolitan area (2.514s). Note: agile_gis_2025_rs is a created schema, by default, the schema public is install. In that case, remove "agile_gis_2025_rs"
time shp2pgsql -D -I -s 54009:4326 GHS_SMOD_E2020_GLOBE_R2023A_54009_1000_UC_V2_0.shp agile_gis_2025_rs.urban_center_4326 | psql -p 25432 -U docker -d gis  -h localhost
# Hospitals (0.217s)
time ogr2ogr -f PostgreSQL PG:"host=localhost port= 25432 user=docker password=docker dbname=gis schemas=agile_gis_2025_rs" Hospitais_com_Leitos_de_UTIs_no_RS.geojson -nln hospitals
# Administrative units (5.854s)
time ogr2ogr -f PostgreSQL PG:"host=localhost port= 25432 user=docker password=docker dbname=gis schemas=agile_gis_2025_rs" geoBoundaries-BRA-ADM2.geojson -nln nuts
#  Flood extent (1.008s)
time ogr2ogr -f PostgreSQL PG:"host=localhost port= 25432 user=docker password=docker dbname=gis schemas=agile_gis_2025_rs" rhguaiba_planetskysat_inundacao_obs_20240506.gpkg -nln flooding_raw

Troubleshooting 1: When shp2pgsql failed to be located despite being installed with postgis, we changed the user permissions in ubuntu to sucessfully find it. Similarly, make sure to be in the directory where the files are to find them. Alternatively, it is required to specifically indicate the file address.

Troubleshooting 2: When importing the urban center, an error regarding the type of geometry appeared. For this, we can use the code ogr2ogr -lco GEOMETRY_NAME=geom -t_srs EPSG:4326 -f PostgreSQL PG:"host=localhost port= 25432 user=docker password=docker dbname=gis schemas=agile_gis_2025_rs" GHS_SMOD_E2020_GLOBE_R2023A_54009_1000_UC_V2_0.shp -nlt MULTIPOLYGON -nln urban_center_4326 based on posts 4 and 5

Troubleshooting 3: When using functions in the schema agile_gis_2025_rs, some of the functions or tables were not found. For this, we used GRANT SELECT ON ALL TABLES IN SCHEMA agile_gis_2025_rs TO docker; 6 and SET search_path TO agile_gis_2025_rs,public;7.

Indirectly using R

The library DBI (Wickham and Müller 2001) uploaded the information to the server using also RPostgres (Wickham, Ooms, and Müller 2025). Although there are different methodologies to upload a csv without manually creating the table first in PostgreSQL 8, we used R. Another reason was that in later steps R is used to calculate the weighted origin and destination matrix (OD).

[Aoi-2] How to import using R
library(DBI)
library(dplyr)
library(RPostgres)
## connect to PostgreSQL
connection <- DBI::dbConnect(RPostgres::Postgres(),
                             user="docker",
                             password="docker",
                             host="localhost",
                             dbname="gis",
                             port=25432)
## Connect to PostgreSQL to read CSV without defining the table manually in PostgreSQL
library(tictoc)
tic()
etlcnes_hospital_selected <- read.csv("~/agile-gscience-2024-rs-flood/data/source_data/ETLCNES_SR_RS_21_12_t.csv") |>
                          dplyr::select(c("CNES",
                                          "QTLEITP1",
                                          "QTLEITP2",
                                          "QTLEITP3",
                                          "NAT_JUR"))
toc() # 1.576 sec elapsed
## Write table using PostgreSQL connection
DBI::dbWriteTable(connection,
                  DBI::Id(schema="agile_gis_2025_rs",
                          table="etlcnes_hospital_selected"),
                          etlcnes_hospital_selected)

Tidy data

Global Human Settlement: Model grid

We filtered the Global Human Settlements (GHS) to the area of interest, the municipality of Porto Alegre. This returned the dense urban center 1210 (gid). Then, we selected those municipalities that intersected with this dense urban center. Although our methodology focused on the impact of floods in the dense urban center, future analysis could easily adapt this methodology to assess the impact of landslides9 in other type of settlement such as those located in rural areas.

Create urban center table for leaflet visualization
---- Dense urban center that intersects with Porto Alegre -> ***Input for leaflet map***
EXPLAIN ANALYZE
CREATE TABLE urban_center_4326_core AS
SELECT
    duc.*
FROM
    urban_center_4326 AS duc,
    (SELECT
        *
     FROM
        nuts
     WHERE
        shapename = 'Porto Alegre') AS porto_alegre
WHERE
    st_intersects(
        duc.geom,
        porto_alegre.wkb_geometry);
--- 13.714 ms

Municipalities

Firstly, we created a common table expression (CTE) that contained the GHS-SMOD 10 (i.e. urban_center_4326) dense urban settlement that intersected with the municipality of Porto Alegre. Table 1 includes the 9 municipalities found running the query [AoI-3]. We added the PIB per capita from Instituto Brasileiro de Geografia e Estatistica 11 and the affected population from Departamento de Economia e Estatistica 12. We named these 9 municipalities as municipalities_ghs, since it is derived from the Global Human Settlment dataset.

[AoI-3] How to select the municipalities
--- Municipalities contained in the urban_center_4326
EXPLAIN ANALYZE
CREATE TABLE municipalities_ghs AS
WITH porto_alegre_ghs AS(
    SELECT
       ghs.*
    FROM
       urban_center_4326 AS ghs
    JOIN
       nuts
    ON
       st_intersects(nuts.wkb_geometry, ghs.geom)
    WHERE
        nuts.shapename = 'Porto Alegre'),
municipalities_ghs_geom AS (
    SELECT
        municipalities.*
    FROM
        nuts AS municipalities,
        porto_alegre_ghs AS ghs
    WHERE
        st_intersects(municipalities.wkb_geometry, ghs.geom))
    SELECT * FROM municipalities_ghs_geom; --- 19.062ms
Table 1: The AoI contained 9 municipalities

Core Metropolitan Area

We created the table core_metropolitan_area that cover the area of study by aggregating the geometry of the 9 municipalities into one single geometry. The road network or built-up density layers used this core metropolitan area as a mask. Defining the area of interest to this mask may exclude important areas located in the boundaries.

[AoI-4] How to create the Core Metropolitan Area
---- Defined core metropolitan area of the municipalities_ghs
EXPLAIN ANALYZE
CREATE TABLE core_metropolitan_area AS
SELECT
    st_union(wkb_geometry) AS geom
FROM
municipalities_ghs; --- 15.382ms

Global Human Settlement: Built-up volume

After reprojecting the CRS to 4326 from the raster and vector data, we masked the global built-up volume raster to the core metropolitan area. This will be later used to sample the origin and destination based on the built-up volume. More dense areas contained a higher concentration of origin and destination from which connectivity is derived.

[Aoi-5] How to import and mask GHS-V
# Import data
library(sf)  # vector files
library(terra) # raster files
library(tictoc) # timing
tic()
buildings_density_global <- terra::rast(
  '~/GHS_BUILT_V_E2020_GLOBE_R2023A_54009_100_V1_0.tif')
toc() ## 0.088 sec elapsed
tic()
municipalities_ghs_transformed <- municipalities_ghs |>
  st_transform(crs(buildings_density_global))
toc() ## 0.071 sec elapsed
tic()
building_density_local_aoi <- crop(buildings_density_global,
                                   municipalities_ghs_transformed)
toc() ## 0.074 sec elapsed
## Reproject for sampling
tic()
building_density_local_aoi_4326 <- terra::project(building_density_local_aoi,
                                                  crs(municipalities_ghs))
toc() ### 0.595 sec elapsed
tic()
building_density_local_aoi_4326_masked <- terra::mask(building_density_local_aoi_4326,
                                                      municipalities_ghs)
toc() ## 0.089 sec elapsed
terra::writeRaster(building_density_local_aoi_4326_masked, "GHS_BUILT_V_E2020_GLOBE_R2023A_4326_100_V1_0_RioGrandeDoSul.tif")
### Reclassify values 0 with missing values (NA) to make them transparent in the leaflet map
values(building_density_local_aoi_4326_masked)[values(building_density_local_aoi_4326_masked) == 0] = NA
